KBL BRUSHLESS Series

The perfect solution for clean room applications. KBL screwdrivers feature state-of-the-art brushless motors and clutch torque control.

Simple set up

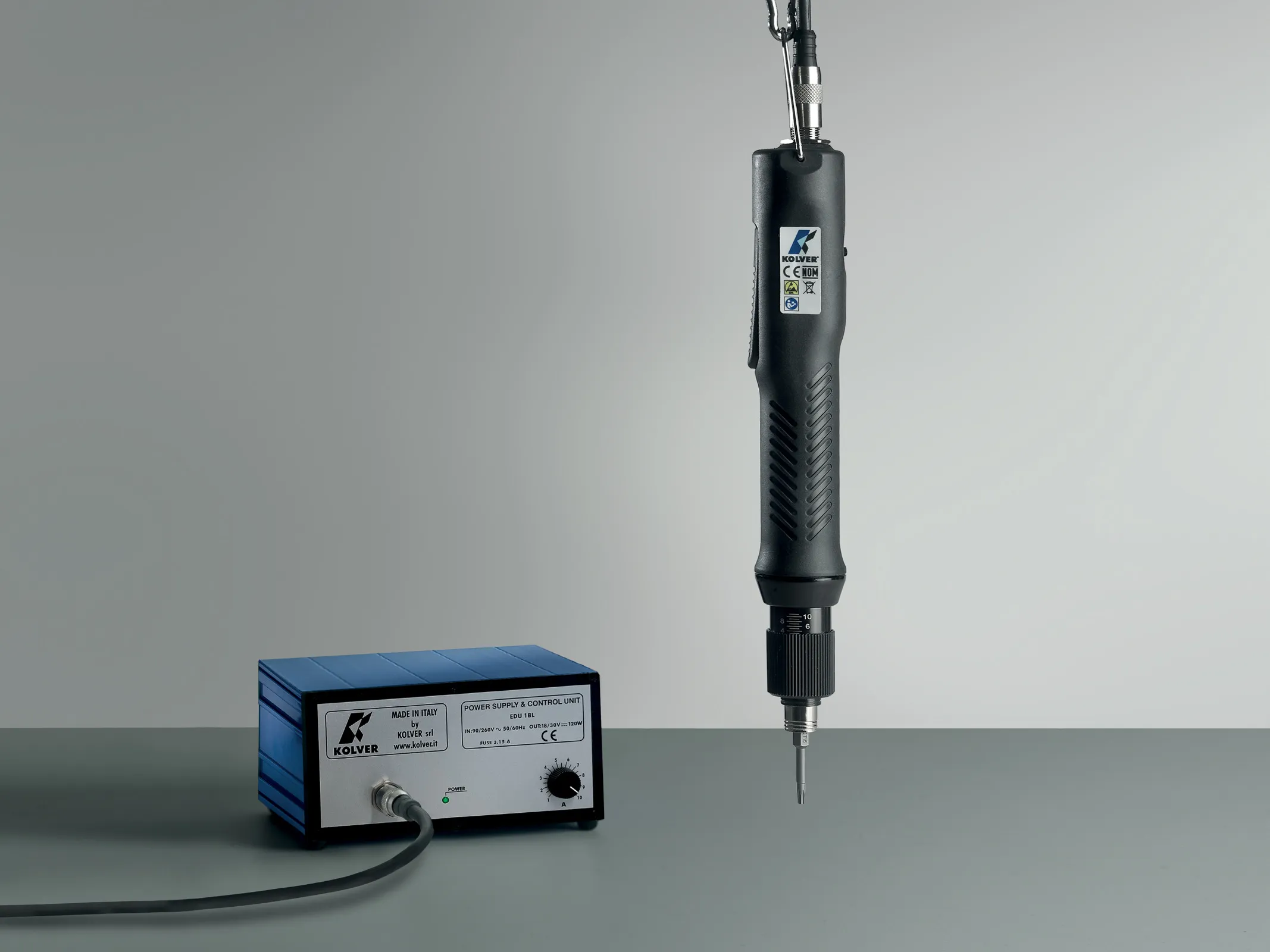

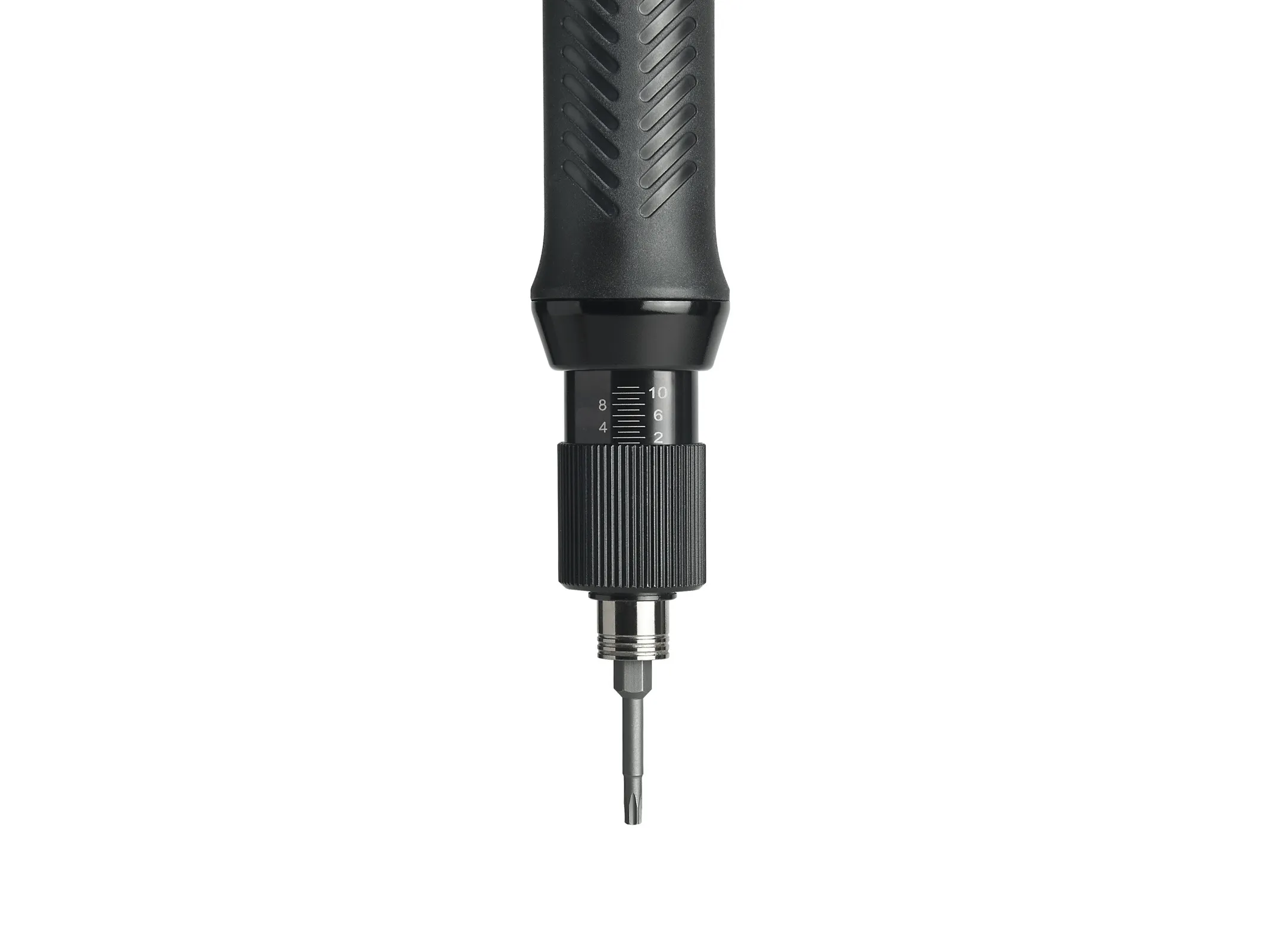

KBL tools are very easy to install and operate. The torque is set externally: you’ll only have to manually adjust the front clutch according to the required torque setting.
Each screwdriver works in combination with a control unit. Its electronic control circuit cuts the power supply to the screwdriver motor in response to the clutch action, as soon as the pre-set torque has been reached.

Maintenance-free
No wearing components and no brush replacement – KBL Screwdrivers combine Swiss brushless motors with magnetic clutch switches for a real maintenance-free solution. The absence of maintenance operations guarantees high productive continuity.
EDU1BL control units for KBL screwdrivers feature state-of-the-art electronics working at only 30 VDC. This design results in very low current to the driver’s start and clutch switches to extend their life even further.

For a cleaner environment
No brushes means zero emissions of carbon dust or other pollutants into the working environment, which makes KBL screwdrivers perfect for clean-room applications.

Safe and ergonomic
KBL hand-held screwdrivers are available in inline, right angle and pistol style and they all come standard with ESD-safe housing.
Small and lightweight for utmost operator comfort and with advanced ergonomic design, they ensure very low noise level, minimum vibrations and maximum safety.

Improve your productivity by cutting investments
It is possible to use two screwdrivers with just one control unit by connecting a double output device called DOCK02 (for KBL FR) or DOCK02/S (for KBL FR/S). The two screwdrivers can be used at the same time for maximum productivity.

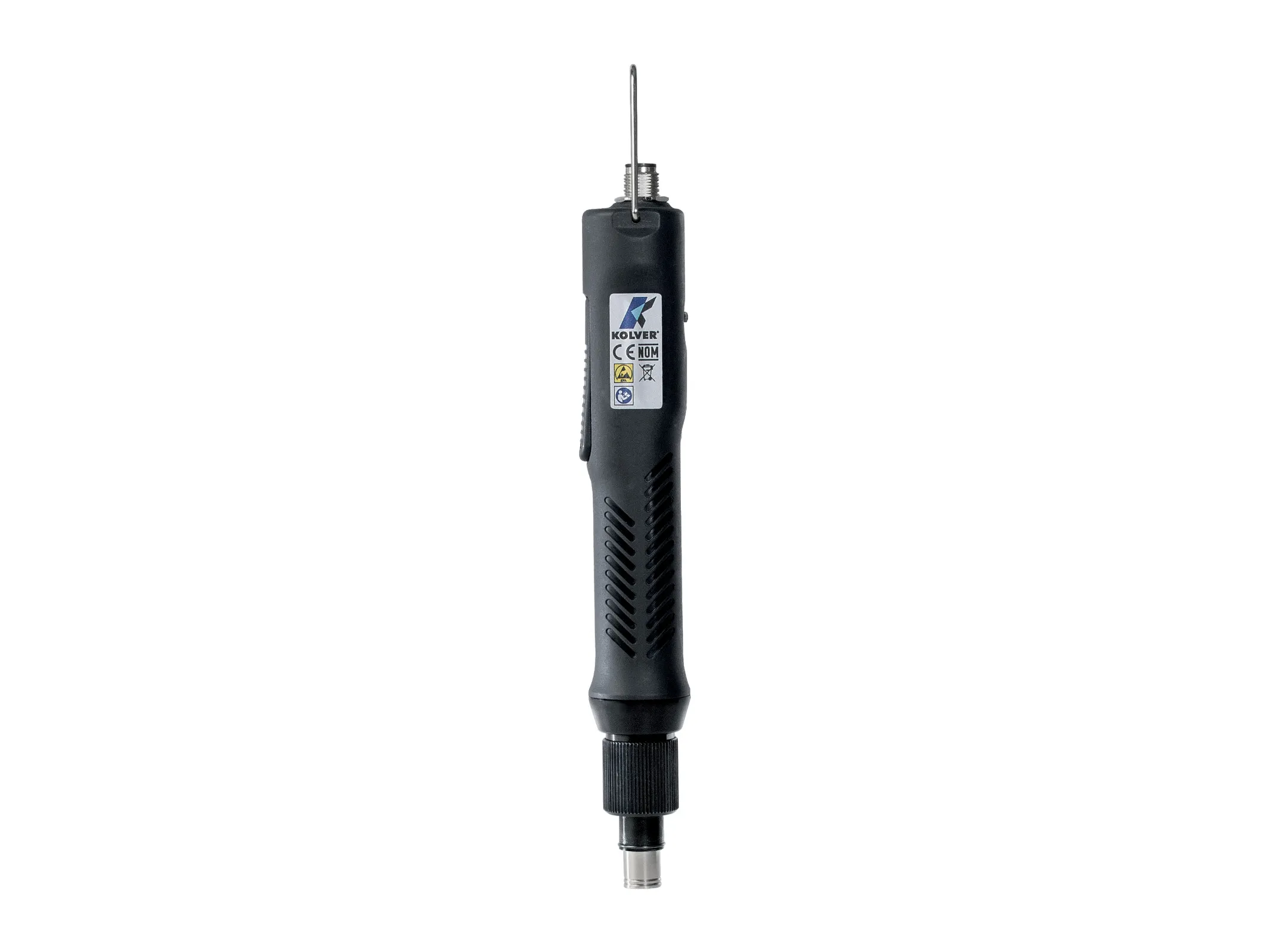

Inline models
ModelCodeTorque in.lbsRPML x Ø inWeight lbController
KBL04FR
Drawings
1900040.4 - 3.5700 - 115010 x 1.51.1EDU1BL
KBL15FR
Drawings
1900153.5 - 13.3700 - 115010 x 1.51.1EDU1BL
KBL30FR
Drawings
1900306.2 - 26.6700 - 115010.6 x 1.71.4EDU1BL
KBL40FR
Drawings
1900408 - 35.4400 - 70010.6 x 1.71.4EDU1BL
Inline models with I/O signals
ModelCodeTorque in.lbsRPML x Ø inWeight lbController
KBL04FR/S
Drawings
190004/S0.4 - 3.5700 - 115010 x 1.51.1EDU1BL/SG
KBL15FR/S
Drawings
190015/S3.5 - 13.3700 - 115010 x 1.51.1EDU1BL/SG
KBL30FR/S
Drawings
190030/S6.2 - 26.6700 - 115010.6 x 1.71.4EDU1BL/SG
KBL40FR/S
Drawings
190040/S8 - 35.4400 - 70010.6 x 1.71.4EDU1BL/SG

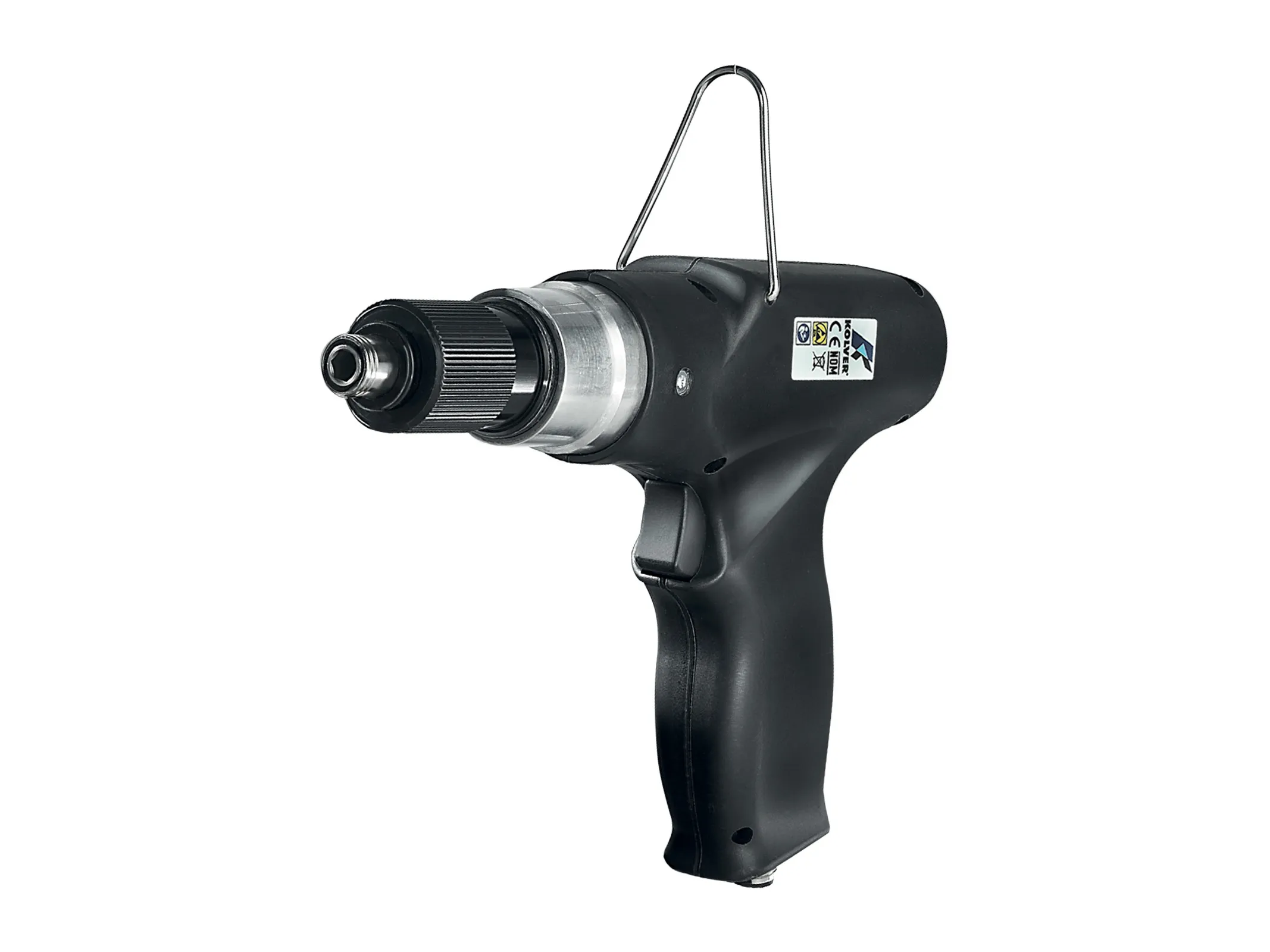

Pistol grip
ModelCodeTorque in.lbsRPML x Ø inWeight lbController
KBL04P/FR1900050.4 - 3.5700 - 11506.1 x 8.3 x 1.81.1EDU1BL
KBL15P/FR1900163.5 - 13.3700 - 11506.1 x 8.3 x 1.81.1EDU1BL
KBL30P/FR1900316.2 - 26.6700 - 11506.1 x 8.5 x 1.81.4EDU1BL
KBL40P/FR1900418 - 35.4400 - 7006.1 x 8.5 x 1.81.4EDU1BL
Pistol grip with I/O signals
ModelCodeTorque in.lbsRPML x Ø inWeight lbController
KBL04P/S190005/S0.4 - 3.5700 - 11506.1 x 8.3 x 1.81.1EDU1BL/SG
KBL15P/S190016/S3.5 - 13.3700 - 11506.1 x 8.3 x 1.81.1EDU1BL/SG
KBL30P/S190031/S6.2 - 26.6700 - 11506.1 x 8.5 x 1.81.4EDU1BL/SG
KBL40P/S190041/S8 - 35.4400 - 7006.1 x 8.5 x 1.81.4EDU1BL/SG
Angle head models
ModelCodeTorque in.lbsRPML x Ø inWeight lbController
KBL04FR/ANG
Drawings
190004/AD0.4 - 3.5700 - 115012.4 x 1.51.3EDU1BL
KBL15FR/ANG
Drawings
190015/AD3.5 - 13.3700 - 115012.4 x 1.51.3EDU1BL
KBL30FR/ANG
Drawings
190030/AD6.2 - 26.6700 - 115013 x 1.71.7EDU1BL
KBL40FR/ANG
Drawings
190040/AD8 - 35.4400 - 70013 x 1.71.7EDU1BL
Angle head models with I/O signals
ModelCodeTorque in.lbsRPML x Ø inWeight lbController
KBL04FR/S/ANG190004/S/A0.4 - 3.5700 - 115012.4 x 1.51.3EDU1BL/SG
KBL15FR/S/ANG190015/S/A3.5 - 13.3700 - 115012.4 x 1.51.3EDU1BL/SG
KBL30FR/S/ANG190030/S/A6.2 - 26.6700 - 115013 x 1.71.7EDU1BL/SG
KBL40FR/S/ANG190040/S/A8 - 35.4400 - 70013 x 1.71.7EDU1BL/SG
Control units
ModelCodeSettable speedRamp optionI/O signalsSerial printScrew countTime min-maxWeight lbDimensions in
EDU1BL
3D
0030001.35.4 x 4.6 x 2.6
EDU1BL/SG
3D
003000/SGwith ACEwith ACEwith ACE1.35.4 x 4.6 x 2.6
Inline models
Model: KBL04FR
Drawings
Code: 190004
Torque in.lbs: 0.4 - 3.5
RPM: 700 - 1150
L x Ø in: 10 x 1.5
Weight lb: 1.1
Controller: EDU1BL
Model: KBL15FR
Drawings
Code: 190015
Torque in.lbs: 3.5 - 13.3
RPM: 700 - 1150
L x Ø in: 10 x 1.5
Weight lb: 1.1
Controller: EDU1BL
Model: KBL30FR
Drawings
Code: 190030
Torque in.lbs: 6.2 - 26.6
RPM: 700 - 1150
L x Ø in: 10.6 x 1.7
Weight lb: 1.4
Controller: EDU1BL
Model: KBL40FR
Drawings
Code: 190040
Torque in.lbs: 8 - 35.4
RPM: 400 - 700
L x Ø in: 10.6 x 1.7
Weight lb: 1.4
Controller: EDU1BL
Inline models with I/O signals
Model: KBL04FR/S
Drawings
Code: 190004/S
Torque in.lbs: 0.4 - 3.5
RPM: 700 - 1150
L x Ø in: 10 x 1.5
Weight lb: 1.1
Controller: EDU1BL/SG
Model: KBL15FR/S
Drawings
Code: 190015/S
Torque in.lbs: 3.5 - 13.3
RPM: 700 - 1150
L x Ø in: 10 x 1.5
Weight lb: 1.1
Controller: EDU1BL/SG
Model: KBL30FR/S
Drawings
Code: 190030/S
Torque in.lbs: 6.2 - 26.6
RPM: 700 - 1150
L x Ø in: 10.6 x 1.7
Weight lb: 1.4
Controller: EDU1BL/SG
Model: KBL40FR/S
Drawings
Code: 190040/S
Torque in.lbs: 8 - 35.4
RPM: 400 - 700
L x Ø in: 10.6 x 1.7
Weight lb: 1.4
Controller: EDU1BL/SG
Pistol grip
Model: KBL04P/FR
Code: 190005
Torque in.lbs: 0.4 - 3.5
RPM: 700 - 1150
L x Ø in: 6.1 x 8.3 x 1.8
Weight lb: 1.1
Controller: EDU1BL
Model: KBL15P/FR
Code: 190016
Torque in.lbs: 3.5 - 13.3
RPM: 700 - 1150
L x Ø in: 6.1 x 8.3 x 1.8
Weight lb: 1.1
Controller: EDU1BL
Model: KBL30P/FR
Code: 190031
Torque in.lbs: 6.2 - 26.6
RPM: 700 - 1150
L x Ø in: 6.1 x 8.5 x 1.8
Weight lb: 1.4
Controller: EDU1BL
Model: KBL40P/FR
Code: 190041
Torque in.lbs: 8 - 35.4
RPM: 400 - 700
L x Ø in: 6.1 x 8.5 x 1.8
Weight lb: 1.4
Controller: EDU1BL
Pistol grip with I/O signals
Model: KBL04P/S
Code: 190005/S
Torque in.lbs: 0.4 - 3.5
RPM: 700 - 1150
L x Ø in: 6.1 x 8.3 x 1.8
Weight lb: 1.1
Controller: EDU1BL/SG
Model: KBL15P/S
Code: 190016/S
Torque in.lbs: 3.5 - 13.3
RPM: 700 - 1150
L x Ø in: 6.1 x 8.3 x 1.8
Weight lb: 1.1
Controller: EDU1BL/SG
Model: KBL30P/S
Code: 190031/S
Torque in.lbs: 6.2 - 26.6
RPM: 700 - 1150
L x Ø in: 6.1 x 8.5 x 1.8
Weight lb: 1.4
Controller: EDU1BL/SG
Model: KBL40P/S
Code: 190041/S
Torque in.lbs: 8 - 35.4
RPM: 400 - 700
L x Ø in: 6.1 x 8.5 x 1.8
Weight lb: 1.4
Controller: EDU1BL/SG
Angle head models
Model: KBL04FR/ANG
Drawings
Code: 190004/AD
Torque in.lbs: 0.4 - 3.5
RPM: 700 - 1150
L x Ø in: 12.4 x 1.5
Weight lb: 1.3
Controller: EDU1BL
Model: KBL15FR/ANG
Drawings
Code: 190015/AD
Torque in.lbs: 3.5 - 13.3
RPM: 700 - 1150
L x Ø in: 12.4 x 1.5
Weight lb: 1.3
Controller: EDU1BL
Model: KBL30FR/ANG
Drawings
Code: 190030/AD
Torque in.lbs: 6.2 - 26.6
RPM: 700 - 1150
L x Ø in: 13 x 1.7
Weight lb: 1.7
Controller: EDU1BL
Model: KBL40FR/ANG
Drawings
Code: 190040/AD
Torque in.lbs: 8 - 35.4
RPM: 400 - 700
L x Ø in: 13 x 1.7
Weight lb: 1.7
Controller: EDU1BL
Angle head models with I/O signals
Model: KBL04FR/S/ANG
Code: 190004/S/A
Torque in.lbs: 0.4 - 3.5
RPM: 700 - 1150
L x Ø in: 12.4 x 1.5
Weight lb: 1.3
Controller: EDU1BL/SG
Model: KBL15FR/S/ANG
Code: 190015/S/A
Torque in.lbs: 3.5 - 13.3
RPM: 700 - 1150
L x Ø in: 12.4 x 1.5
Weight lb: 1.3
Controller: EDU1BL/SG
Model: KBL30FR/S/ANG
Code: 190030/S/A
Torque in.lbs: 6.2 - 26.6
RPM: 700 - 1150
L x Ø in: 13 x 1.7
Weight lb: 1.7
Controller: EDU1BL/SG
Model: KBL40FR/S/ANG
Code: 190040/S/A
Torque in.lbs: 8 - 35.4
RPM: 400 - 700
L x Ø in: 13 x 1.7
Weight lb: 1.7
Controller: EDU1BL/SG
