FAB & RAF Series

Lightweight but resistant, compact but powerful, FAB & RAF electric screwdrivers feature the best performance-to-weight ratio in the market.

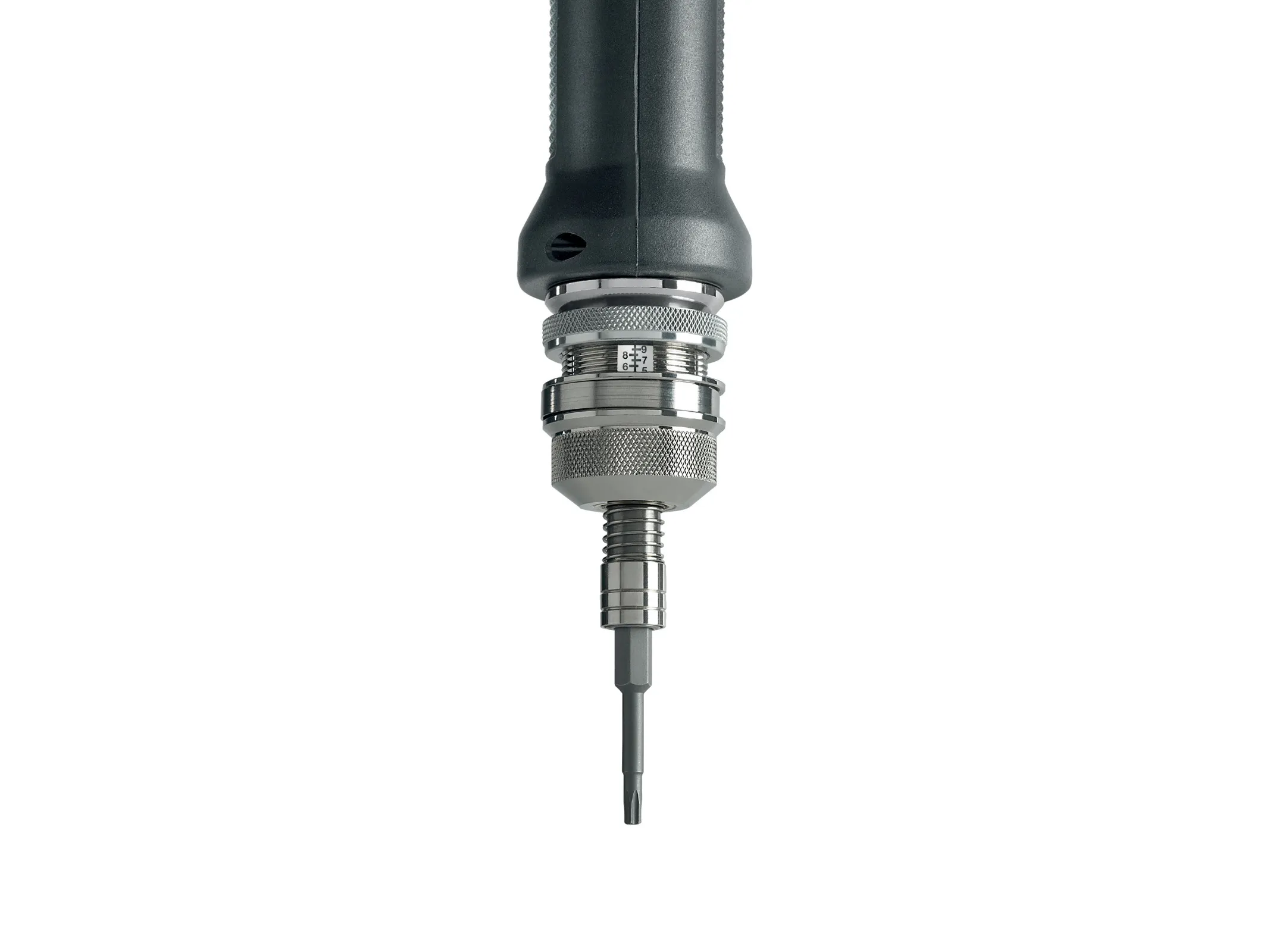

Quick to set up, easy to use FAB and RAF tools are incredibly easy to install and operate. The torque is set externally: you’ll only have to turn the clutch adjusting nut according to the required torque setting. Each screwdriver works in combination with a control unit. Its electronic control circuit cuts the power supply to the screwdriver motor in response to the clutch action as soon as the pre-set torque has been reached.

Simple maintenance Replacing carbon brushes and greasing the gears once a year is all you need for maintenance. EDU1FR control units for FAB and RAF screwdrivers feature a maintenance-free, state-of-the-art electronics and no wearing components. This design results in very low current to the driver’s start switch and clutch switch to extend their life indefinitely.

Safe, clean and low noise All FAB and RAF models come standard with ESD-safe housings against electrostatic discharge. Their electric motor makes them not only energy efficient but also free of pollutants and contributes to a quieter environment (noise within 55 dB(A)). Ergonomic grip, lightweight and compact design for maximum operator comfort.

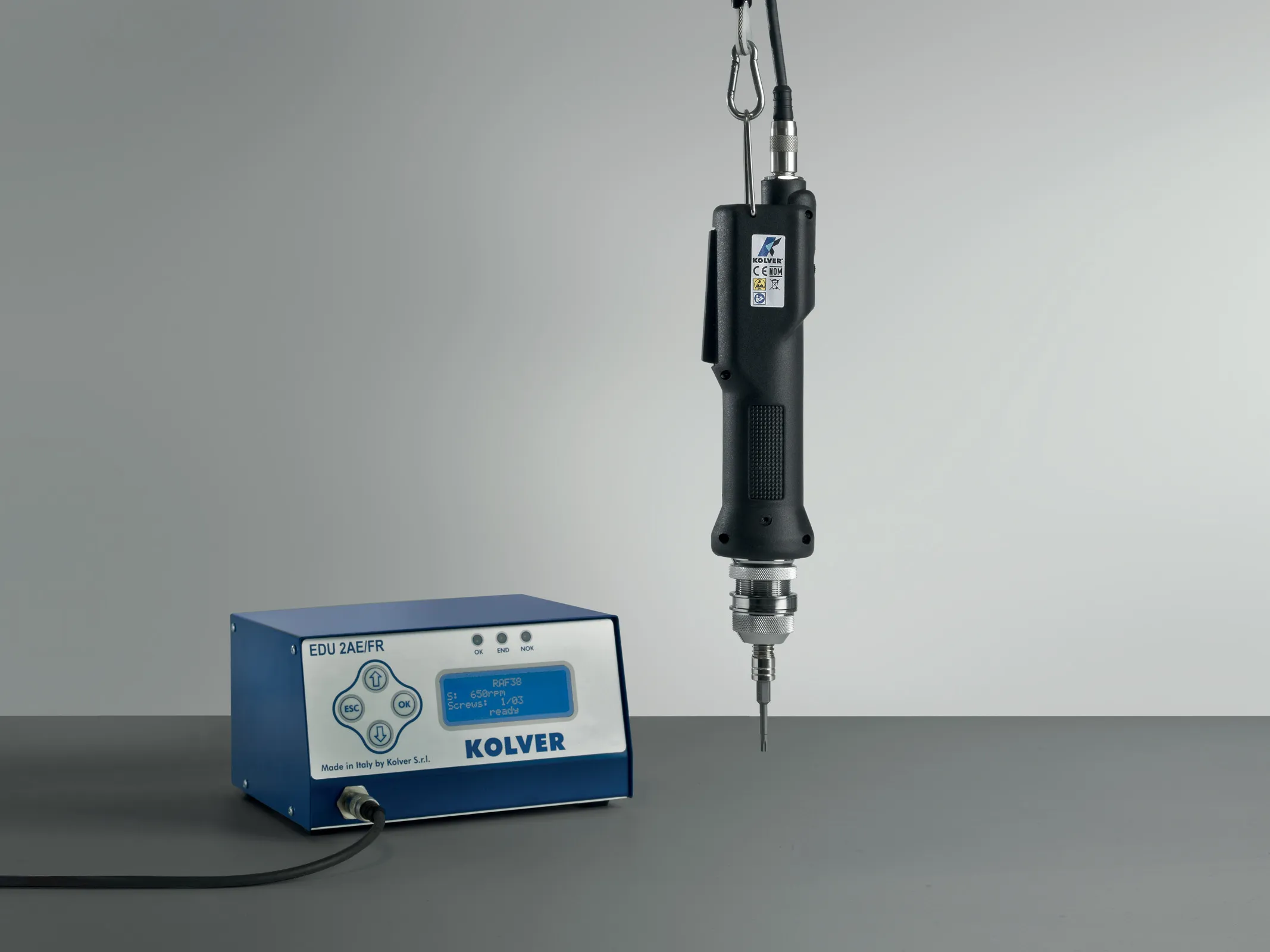

Basic and advanced functionalities FAB and RAF work in combination with EDU1FR series controllers, acting as an AC to DC transformer and torque controller with adjustable slow start and speed. More features available when used in combination with EDU2AE/FR controller or EDU1FR/SG with ACE screw counter.

Model	Code	Torque Nm	RPM max	L x Ø mm	Start option	Weight kg	Controller	Style

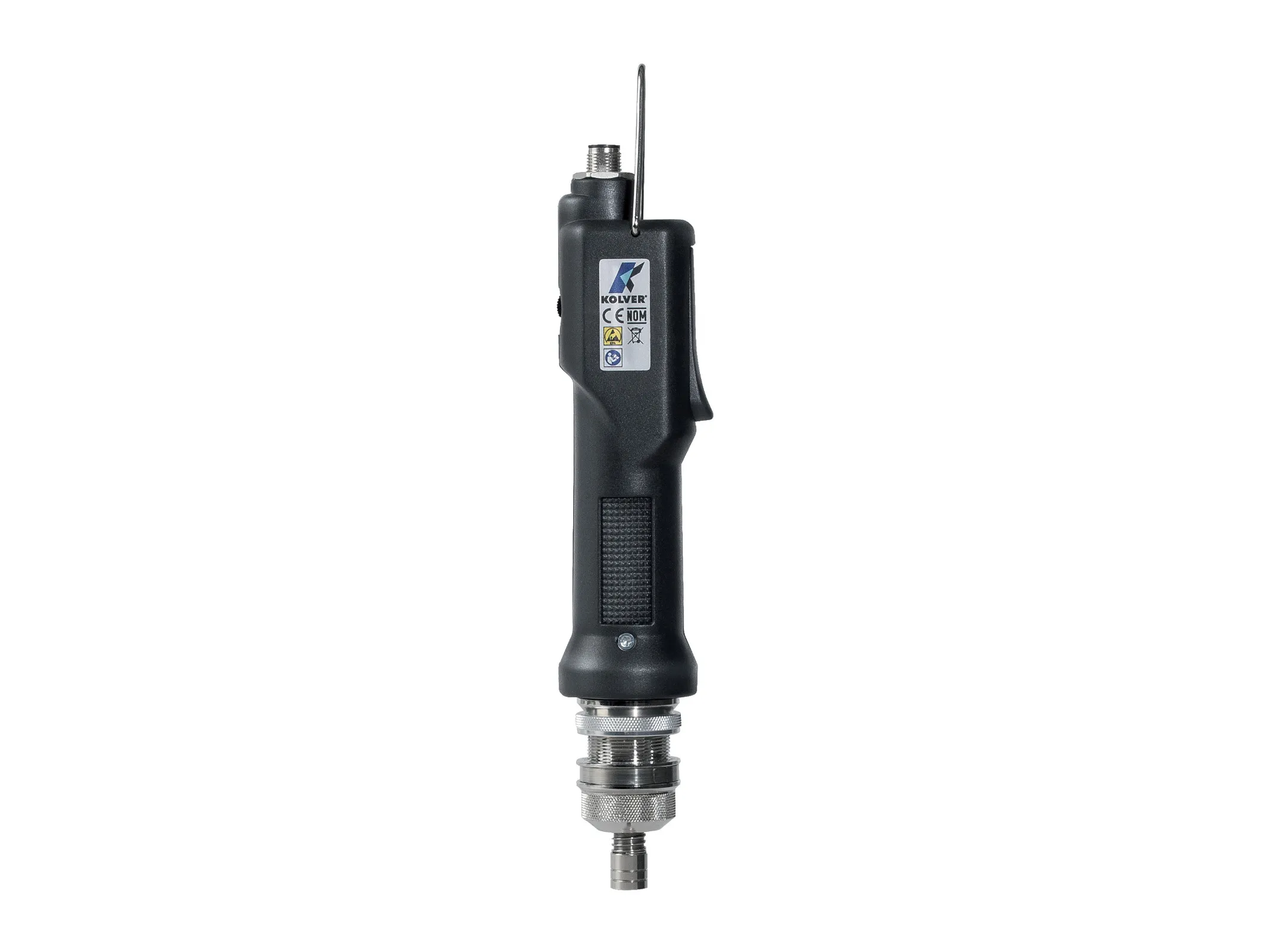

FAB03SS/FR 2D	110003/FR	0.05 - 0.3	650	237 x 33	Lever	0.5	EDU1FR	Inline
FAB10RE/FR 2D 3D	110010/FR	0.05 - 0.8	1000	237 x 33	Lever	0.5	EDU1FR	Inline
FAB12RE/FR 2D 3D	110012/FR	0.2 - 1.2	1000	237 x 33	Lever	0.5	EDU1FR	Inline
FAB12PS/FR 2D 3D	112012/FR	0.2 - 1.2	1000	249 x 33	Push start	0.5	EDU1FR	Inline

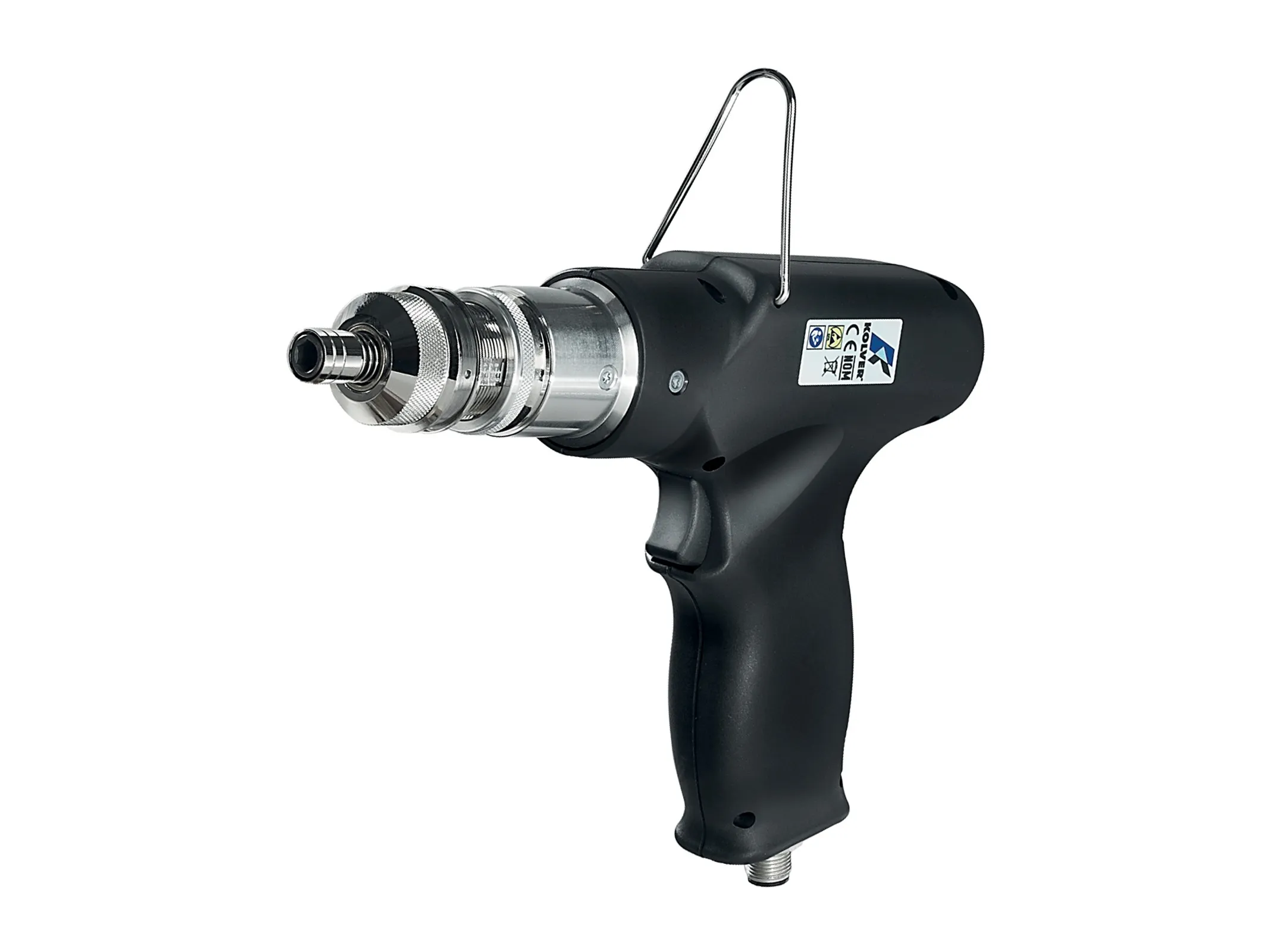

FAB12PP/FR 2D 3D	110013/FR	0.2 - 1.2	1000	220 x 159 x 44	Trigger	0.55	EDU1FR	Pistol grip
FAB12PP/FR/U 2D	110013/FR/U	0.2 - 1.2	1000	220 x 163 x 44	Trigger	0.55	EDU1FR	Pistol grip with top connector
FAB18RE/FR 2D 3D	110618/FR	0.3 - 1.8	650	237 x 33	Lever	0.5	EDU1FR	Inline
FAB18PS/FR 2D 3D	112618/FR	0.3 - 1.8	650	249 x 33	Push start	0.5	EDU1FR	Inline
FAB18PP/FR 2D 3D	110619/FR	0.3 - 1.8	650	220 x 159 x 44	Trigger	0.55	EDU1FR	Pistol grip
FAB18PP/FR/U 2D	110619/FR/U	0.3 - 1.8	650	220 x 163 x 44	Trigger	0.55	EDU1FR	Pistol grip with top connector
RAF32NS/FR 2D 3D	120032/FR	0.7 - 3.2	1000	259 x 40	Lever	0.65	EDU1FR	Inline
RAF32PS/FR 2D 3D	122032/FR	0.7 - 3.2	1000	269 x 40	Push start	0.65	EDU1FR	Inline
RAF32PP/FR 2D	120033/FR	0.7 - 3.2	1000	220 x 159 x 44	Trigger	0.65	EDU1FR	Pistol grip
RAF32PP/FR/U 2D 3D	120033/FR/U	0.7 - 3.2	1000	220 x 163 x 44	Trigger	0.65	EDU1FR	Pistol grip with top connector
RAF38NS/FR 2D 3D	120638/FR	0.9 - 3.8	650	259 x 40	Lever	0.65	EDU1FR	Inline
RAF38PS/FR 2D	122638/FR	0.9 - 3.8	650	269 x 40	Push start	0.65	EDU1FR	Inline
RAF38PP/FR 2D 3D	120639/FR	0.9 - 3.8	650	220 x 159 x 44	Trigger	0.65	EDU1FR	Pistol grip
RAF38PP/FR/U 2D 3D	120639/FR/U	0.9 - 3.8	650	220 x 163 x 44	Trigger	0.65	EDU1FR	Pistol grip with top connector
RAF50NS/FR 2D 3D	120650/FR	0.9 - 5	700	259 x 40	Lever	0.65	EDU1FR	Inline
RAF50PS/FR	122650/FR	0.9 - 5	700	269 x 40	Push start	0.65	EDU1FR	Inline
RAF50PP/FR	120651/FR	0.9 - 5	700	220 x 159 x 44	Trigger	0.7	EDU1FR	Pistol grip
RAF50PP/FR/U 3D	120651/FR/U	0.9 - 5	700	220 x 163 x 44	Trigger	0.7	EDU1FR	Pistol grip with top connector

Control units

Model	Code	Settable speed	Ramp option	I/O signals	Serial print	Screw count	Time min-max	Weight kg	Dimensions mm
EDU1FR 2D 3D	010010/FR	✓	✓					0.6	138 x 118 x 67
EDU1FR/SG 2D 3D	010010/FR/SG	✓	✓	✓	with ACE	with ACE		0.6	138 x 118 x 67
EDU2AE/FR 2D 3D	032000/FR	✓	✓	✓	✓	✓	✓	2.4	195 x 170 x 110
