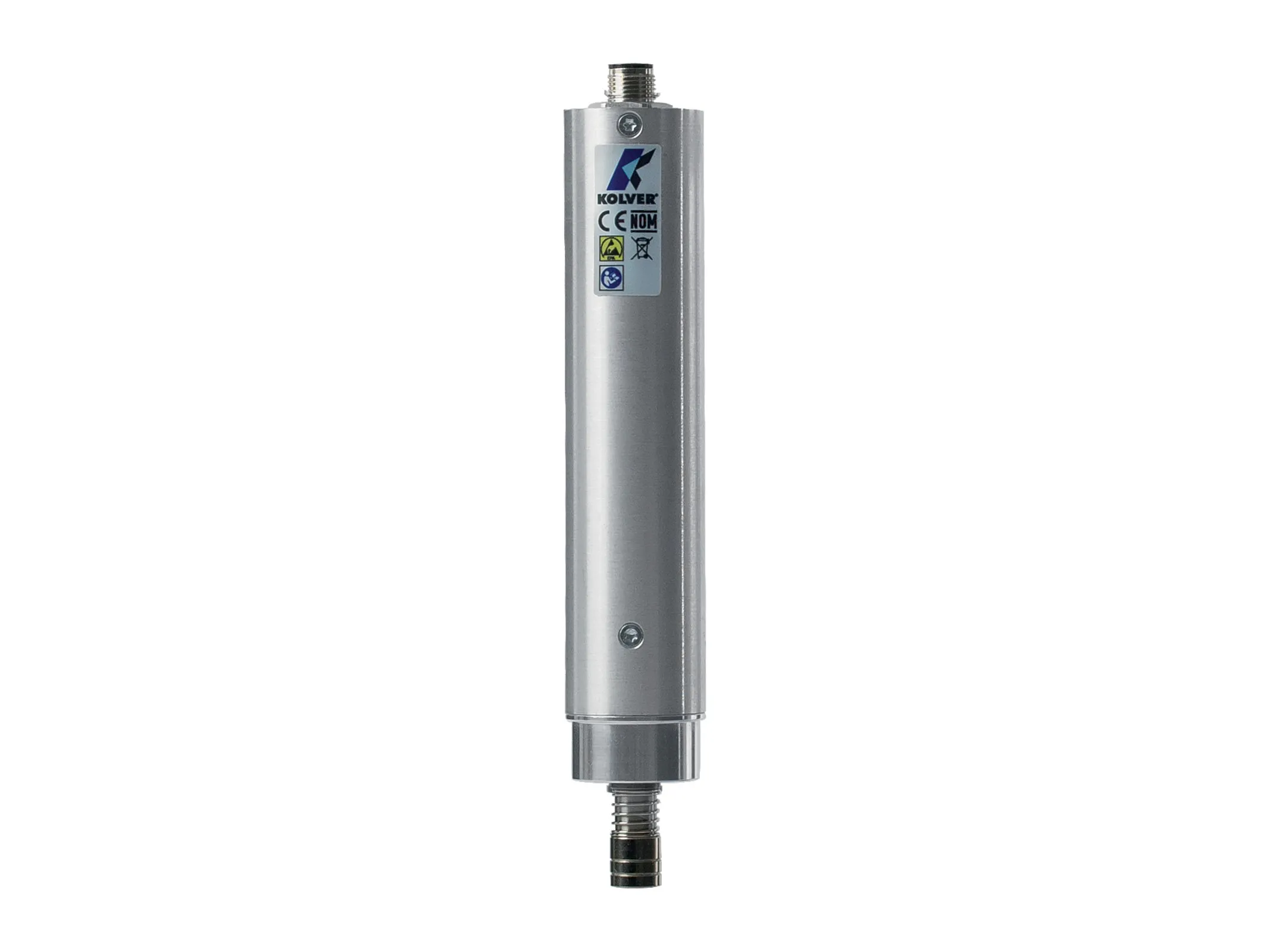

CA screwdrivers are designed for automated and fixtured applications and they feature an aluminum body for easy and quick clamp, as well as special wiring for specific use with SG controllers with remote start and reverse and torque signal.
For those applications requiring maximum precision or full Industry 4.0 compliance, the K-DUCER’s KDS CA transducerized screwdrivers are very easy to install on robots, automatic machines and autofeeding systems.

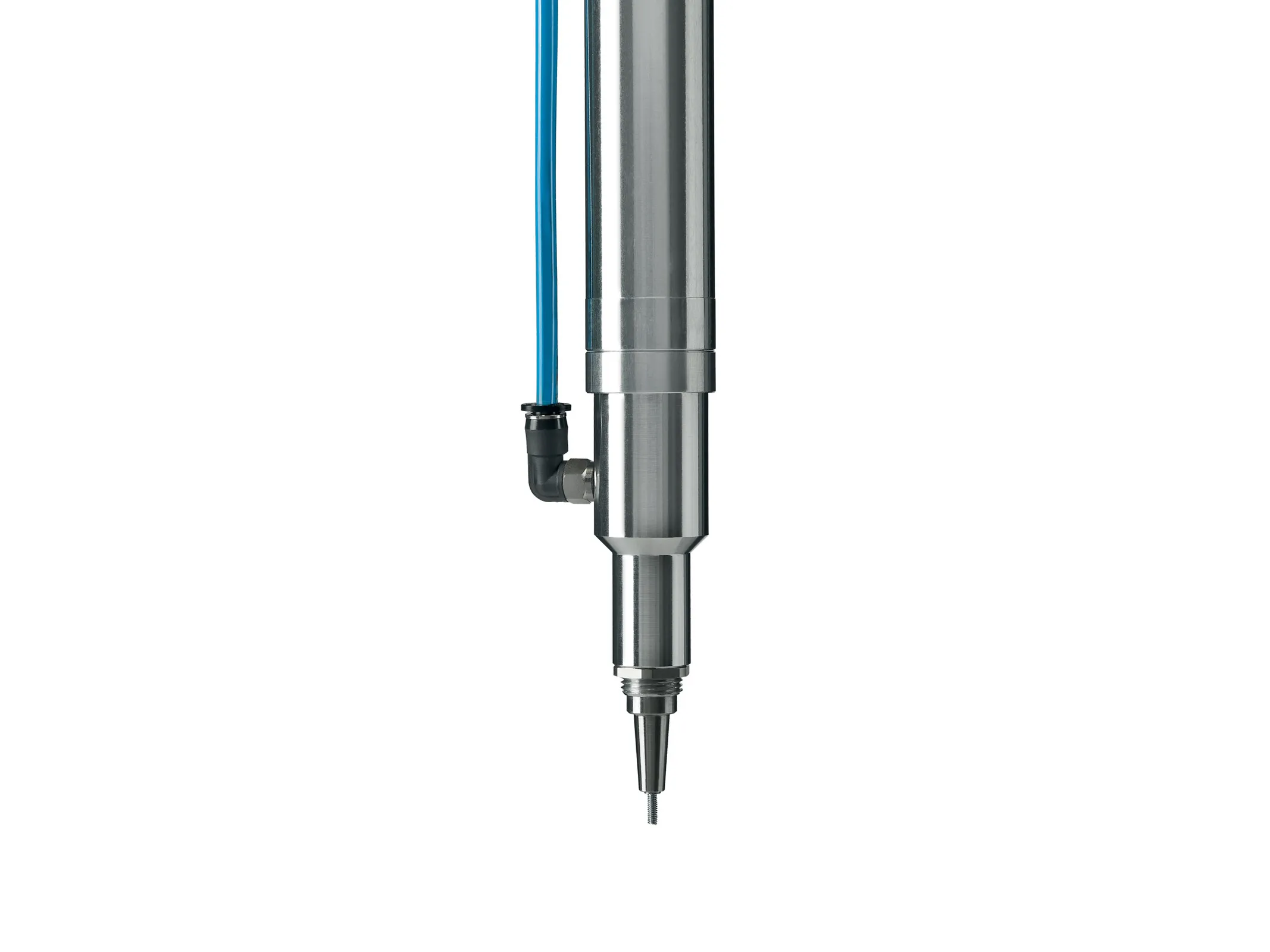

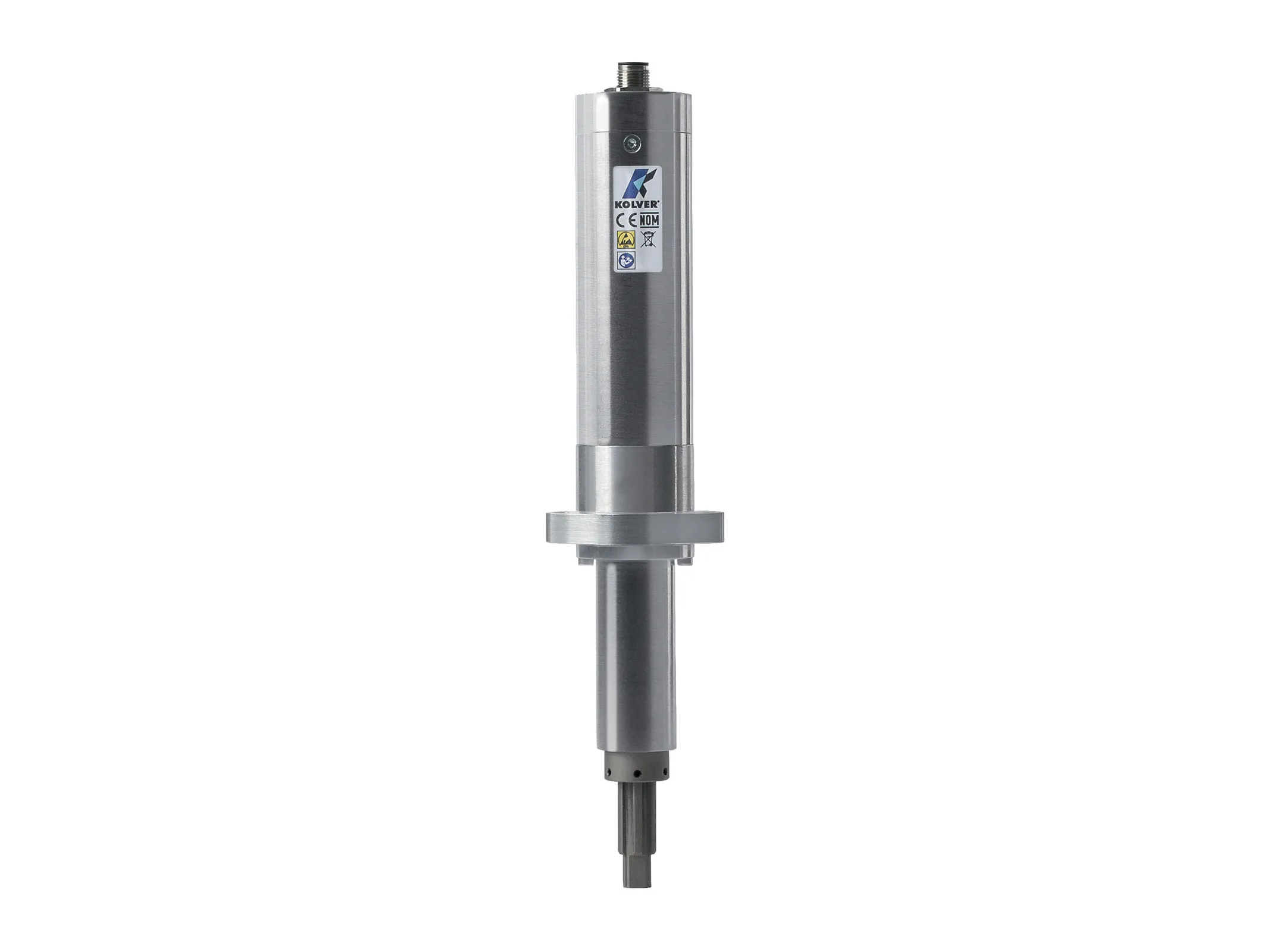

KDS CA/FN models are supplied with flange and telescopic spindle specifically designed for demanding applications. Models with 90° angle heads for hard-to-reach screws are also available.
System components
Frequently bought together
| Accessory |
|---|
| Robot toolholder |
| Screw presenter |
KDS CA
| Model | Code | Torque Nm | RPM | Dimensions mm | Weight kg | Bit Size | Controller |
|---|---|---|---|---|---|---|---|
| KDS-NT70CA 2D 3D | 165150 | 0.05 - 0.7 | 20 - 700 | 221 x 27 | 0.3 | ⬡ Hex 1/4" | KDU-NT |
| KDS-NT70CA/HM 2D 3D | 165150/HM | 0.05 - 0.7 | 20 - 700 | 221 x 27 | 0.3 | ◐ Half moon 4 mm | KDU-NT |
| KDS-NT120CA 2D 3D | 165151 | 0.2 - 1.2 | 20 - 400 | 221 x 27 | 0.3 | ⬡ Hex 1/4" | KDU-NT |
| KDS-NT120CA/HM 2D 3D | 165151/HM | 0.2 - 1.2 | 20 - 400 | 221 x 27 | 0.3 | ◐ Half moon 4 mm | KDU-NT |
| KDS-MT1.5CA 2D 3D | 175115 | 0.1 - 1.5 | 50 - 850 | 237 x 40 | 0.65 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL3CA 2D 3D | 135103 | 0.4 - 3 | 50 - 1800 | 248 x 40 | 0.72 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL6CA 2D 3D | 135106 | 0.5 - 6.0 | 50 - 850 | 248 x 40 | 0.72 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL10CA 2D 3D | 135110 | 0.8 - 10 | 50 - 600 | 248 x 40 | 0.72 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL15CA 2D 3D | 135115 | 0.5 - 15 | 50 - 320 | 248 x 40 | 0.72 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL20SCA 2D 3D | 135020S/CA | 2 - 20 | 50 - 240 | 263 x 40 | 0.78 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL20CA 2D 3D | 135120 | 2 - 20 | 20 - 210 | 297 x 48 | 1.3 | ■ Sq 3/8" | KDU-1A |
| KDS-PL35CA 2D 3D | 135135 | 3 - 35 | 20 - 140 | 318 x 57 | 1.8 | ■ Sq 3/8" | KDU-1A |
| KDS-PL50CA 2D 3D | 135150 | 5 - 50 | 20 - 90 | 322 x 57 | 1.8 | ■ Sq 1/2" | KDU-1A |
KDS CA with flange mount
| Model | Code | Torque Nm | RPM | Dimensions mm | Weight kg | Bit Size | Controller |
|---|---|---|---|---|---|---|---|
| KDS-NT70CA/FN 2D 3D | 165150/FN | 0.05 - 0.7 | 20 - 700 | 301 x 27 | 0.5 | ⬡ Hex 1/4" | KDU-NT |
| KDS-NT120CA/FN 2D 3D | 165151/FN | 0.2 - 1.2 | 20 - 400 | 301 x 27 | 0.5 | ⬡ Hex 1/4" | KDU-NT |
| KDS-MT1.5CA/FN 2D 3D | 175115/FN | 0.1 - 1.5 | 50 - 850 | 237 x 40 | 0.9 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL3CA/FN/1-4 2D 3D | 135103/FN/1-4 | 0.4 - 3 | 50 - 1800 | 350 x 40 | 1.1 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL6CA/FN 2D 3D | 135106/FN | 0.5 - 6.0 | 50 - 850 | 350 x 40 | 1.1 | ■ Sq 3/8" | KDU-1A |
| KDS-PL6CA/FN/1-4 2D 3D | 135106/FN-1/4 | 0.5 - 6.0 | 50 - 850 | 350 x 40 | 1.1 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL10CA/FN 2D 3D | 135110/FN | 0.8 - 10 | 50 - 600 | 350 x 40 | 1.1 | ■ Sq 3/8" | KDU-1A |
| KDS-PL10CA/FN/1-4 2D 3D | 135110/FN | 0.8 - 10 | 50 - 600 | 350 x 40 | 1.1 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL15CA/FN 2D 3D | 135115/FN | 0.5 - 15 | 50 - 320 | 350 x 40 | 1.1 | ■ Sq 3/8" | KDU-1A |
| KDS-PL15CA/FN/1-4 2D 3D | 135115/FN | 0.5 - 15 | 50 - 320 | 350 x 40 | 1.1 | ■ Sq 3/8" | KDU-1A |
| KDS-PL20CA/FN 2D 3D | 135120/FN | 2 - 20 | 20 - 210 | 348 x 48 | 1.6 | ■ Sq 3/8" | KDU-1A |
| KDS-PL35CA/FN 2D 3D | 135135/FN | 3 - 35 | 20 - 140 | 409 x 57 | 2.1 | ■ Sq 3/8" | KDU-1A |
| KDS-PL50CA/FN 2D 3D | 135150/FN | 5 - 50 | 20 - 90 | 420 x 43 | 2.3 | ■ Sq 1/2" | KDU-1A |
KDS CA with angle head
| Model | Code | Torque Nm | RPM | Dimensions mm | Weight kg | Bit Size | Controller |
|---|---|---|---|---|---|---|---|
| KDS-PL3CA/ANG | 135103/A | 0.4 - 3 | 50 - 1800 | 280 x 40 | 0.7 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL6CA/ANG 2D 3D | 135106/A | 0.5 - 5.5 | 50 - 850 | 280 x 40 | 0.7 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL10CA/ANG 2D 3D | 135110/A | 0.8 - 9 | 50 - 600 | 280 x 40 | 0.7 | ⬡ Hex 1/4" | KDU-1A |
| KDS-PL15CA/ANG 2D 3D | 135115/A | 0.5 - 12 | 50 - 320 | 322 x 40 | 0.9 | ■ Sq 3/8" | KDU-1A |
| KDS-PL20CA/ANG 2D 3D | 135120/A | 2 - 20 | 20 - 210 | 313 x 48 | 1.3 | ■ Sq 3/8" | KDU-1A |
PLUTO MITO & NATO CA
| Model | Code | Torque Nm | RPM | Dimensions mm | Weight kg | Bit Size | Controller |
|---|---|---|---|---|---|---|---|
| MITO15CA 2D 2D expl 3D | 170016 | 0.4 - 1.5 | 450 - 850 | 193 x 32 | 0.36 | ⬡ Hex 1/4" | Serie EDU2AE |
| PLUTO3CA 2D 3D | 130303 | 0.5 - 2.5 | 370 - 1300 | 168 x 40 | 0.5 | ⬡ Hex 1/4" | Serie EDU2AE |
| PLUTO6CA 2D 3D | 133206 | 1 - 6 | 200 - 850 | 168 x 40 | 0.5 | ⬡ Hex 1/4" | Serie EDU2AE |
| PLUTO10CA/N 2D 2D expl 3D | 133211/N | 1.5 - 10 | 110 - 600 | 168 x 40 | 0.5 | ⬡ Hex 1/4" | Serie EDU2AE |
| PLUTO15CA/N 2D 3D | 133216/N | 2.0 - 15 | 60 - 320 | 168 x 40 | 0.5 | ⬡ Hex 1/4" | Serie EDU2AE |
| PLUTO20CA 2D 2D expl 3D | 133221 | 3.0 - 20 | 50 - 200 | 232 x 47 | 1.1 | ■ Sq 3/8" | Serie EDU2AE |
| PLUTO35CA 2D 2D expl 3D | 133236 | 3.0 - 35 | 40 - 140 | 247 x 57 | 1.5 | ■ Sq 3/8" | Serie EDU2AE |
| PLUTO50CA 2D 2D expl 3D | 133250 | 5.0 - 50 | 20 - 90 | 252 x 57 | 1.5 | ■ Sq 1/2" | Serie EDU2AE |
| MITO15CA/FN 2D 2D expl 3D | 170016/FN | 0.4 - 1.5 | 450 - 850 | 271 x 33 | 0.4 | ⬡ Hex 1/4" | Serie EDU2AE |
| PLUTO3CA/FN2 2D 3D | 130303/FN2 | 0.5 - 2.5 | 370 - 1300 | 268 x 40 | 0.7 | ■ Sq 3/8" | Serie EDU2AE |
| PLUTO3CA/FN2/1-4 2D 3D | 130303/FN2/1-4 | 0.5 - 2.5 | 370 - 1300 | 268 x 40 | 0.7 | ⬡ Hex 1/4" | Serie EDU2AE |
| PLUTO6CA/FN2 2D 3D | 133206/FN2 | 1 - 6 | 200 - 850 | 268 x 40 | 0.7 | ■ Sq 3/8" | Serie EDU2AE |
| PLUTO6CA/FN2/1-4 2D 3D | 133206/FN2/1-4 | 1 - 6 | 200 - 850 | 268 x 40 | 0.7 | ⬡ Hex 1/4" | Serie EDU2AE |
| PLUTO10CA/FN2 2D 3D | 133211/FN2 | 1.5 - 10 | 110 - 600 | 268 x 40 | 0.7 | ■ Sq 3/8" | Serie EDU2AE |
| PLUTO15CA/FN2 2D 3D | 133216/FN2 | 2.0 - 15 | 60 - 320 | 268 x 40 | 0.7 | ■ Sq 3/8" | Serie EDU2AE |
| PLUTO20CA/FN 2D 2D expl 3D | 133221/FN | 3.0 - 20 | 50 - 200 | 323 x 47 | 1.35 | ■ Sq 3/8" | Serie EDU2AE |
| PLUTO35CA/FN 2D 2D expl 3D | 133236/FN | 3.0 - 35 | 40 - 140 | 338 x 57 | 1.95 | ■ Sq 3/8" | Serie EDU2AE |
| PLUTO50CA/FN 2D 2D expl 3D | 133250/FN | 5.0 - 50 | 20 - 90 | 351 x 57 | 1.95 | ■ Sq 1/2" | Serie EDU2AE |
PLUTO MITO & NATO CA - Torque & Angle
| Model | Code | Torque Nm | RPM | Dimensions mm | Weight kg | Bit Size | Controller |
|---|---|---|---|---|---|---|---|
| NATO15CA/TA 2D 2D expl | 163015/TA | 0.02 - 0.27 | 100 - 700 | 150 x 25 | 0.18 | ◐ Half moon 4 mm | EDU2AE/TOP/NT/TA |
| NATO50CA/TA 2D 2D expl 3D | 163050/TA | 0.05 - 0.7 | 50 - 700 | 150 x 25 | 0.18 | ⬡ Hex 1/4" | EDU2AE/TOP/NT/TA |
| MITO15CA/TA 2D 2D expl 3D | 170016/TA | 0.35 - 1.5 | 450 - 850 | 193 x 32 | 0.36 | ⬡ Hex 1/4" | EDU2AE/TOP/TA |
| MITO15CA/FN/TA 2D 3D | 170016/FN/TA | 0.35 - 1.5 | 450 - 850 | 271 x 32 | 0.4 | ⬡ Hex 1/4" | EDU2AE/TOP/TA |
| PLUTO3CA/TA 2D 3D | 130303/TA | 0.5 - 2.5 | 370 - 1300 | 168 x 40 | 0.5 | ⬡ Hex 1/4" | EDU2AE/TOP/TA |
| PLUTO3CA/FN2/TA 2D 3D | 130303/FN2/TA | 0.5 - 2.5 | 370 - 1300 | 268 x 40 | 0.7 | ■ Sq 3/8" | EDU2AE/TOP/TA |
| PLUTO3CA/FN2/TA/1-4 | 130303/FN2/TA/1-4 | 0.5 - 2.5 | 370 - 1300 | 247 x 40 | 0.7 | ⬡ Hex 1/4" | EDU2AE/TOP/TA |
| PLUTO6CA/TA 2D 3D | 133206/TA | 1 - 6 | 200 - 850 | 168 x 40 | 0.5 | ⬡ Hex 1/4" | EDU2AE/TOP/TA |
| PLUTO6CA/FN2/TA 2D 3D | 133206/FN2/TA | 1 - 6 | 200 - 850 | 268 x 40 | 0.7 | ■ Sq 3/8" | EDU2AE/TOP/TA |
| PLUTO6CA/FN2/TA/1-4 | 133206/FN2/TA/1-4 | 1 - 6 | 200 - 850 | 247 x 40 | 0.7 | ⬡ Hex 1/4" | EDU2AE/TOP/TA |
| PLUTO10CA/TA 2D 3D | 133211/TA | 1.5 - 10 | 110 - 600 | 168 x 40 | 0.5 | ⬡ Hex 1/4" | EDU2AE/TOP/TA |
| PLUTO10CA/FN2/TA 2D 3D | 133211/FN2/TA | 1.5 - 10 | 110 - 600 | 268 x 40 | 0.7 | ■ Sq 3/8" | EDU2AE/TOP/TA |
| PLUTO15CA/TA 2D 3D | 133216/TA | 2.0 - 15 | 60 - 320 | 168 x 40 | 0.5 | ⬡ Hex 1/4" | EDU2AE/TOP/TA |
| PLUTO15CA/FN2/TA 2D 3D | 133216/FN2/TA | 2.0 - 15 | 60 - 320 | 268 x 40 | 0.7 | ■ Sq 3/8" | EDU2AE/TOP/TA |
| PLUTO20CA/TA | 133221/TA | 3.0 - 20 | 50 - 200 | 232 x 47 | 1.1 | ■ Sq 3/8" | EDU2AE/TOP/TA |
| PLUTO20CA/FN/TA | 133221/FN/TA | 3.0 - 20 | 50 - 200 | 323 x 47 | 1.35 | ■ Sq 3/8" | EDU2AE/TOP/TA |
| PLUTO35CA/TA | 133236/TA | 3.0 - 35 | 40 - 140 | 247 x 57 | 1.5 | ■ Sq 3/8" | EDU2AE/TOP/TA |
| PLUTO35CA/FN/TA | 133236/FN/TA | 3.0 - 35 | 40 - 140 | 338 x 57 | 1.95 | ■ Sq 3/8" | EDU2AE/TOP/TA |
| PLUTO50CA/TA | 133250/TA | 5.0 - 50 | 20 - 90 | 252 x 57 | 1.5 | ■ Sq 1/2" | EDU2AE/TOP/TA |
| PLUTO50CA/FN/TA | 133250/FN/TA | 5.0 - 50 | 20 - 90 | 351 x 57 | 1.95 | ■ Sq 1/2" | EDU2AE/TOP/TA |
KBL CA
| Model | Code | Torque Nm | RPM | Dimensions mm | Weight kg | Bit Size | Controller |
|---|---|---|---|---|---|---|---|
| KBL04FR/CA 2D 2D expl 3D | 190004/CA | 0.04 - 0.4 | 700 - 1150 | 257 x 40 | 0.6 | ⬡ Hex 1/4" | EDU1BL/SG |
| KBL15FR/CA 2D 2D expl 3D | 190015/CA | 0.4 - 1.5 | 700 - 1150 | 257 x 40 | 0.6 | ⬡ Hex 1/4" | EDU1BL/SG |
| KBL30FR/CA 2D 2D expl 3D | 190030/CA | 0.7 - 3 | 700 - 1150 | 264 x 40 | 0.75 | ⬡ Hex 1/4" | EDU1BL/SG |
| KBL40FR/CA 2D 2D expl | 190040/CA | 0.9 - 4 | 400 - 700 | 264 x 40 | 0.75 | ⬡ Hex 1/4" | EDU1BL/SG |
| KBL04FR/CA/FN 2D 2D expl 3D | 190004/CA/FN | 0.04 - 0.4 | 700 - 1150 | 330 x 40 | 0.65 | ⬡ Hex 1/4" | EDU1BL/SG |
| KBL15FR/CA/FN 2D 2D expl 3D | 190015/CA/FN | 0.4 - 1.5 | 700 - 1150 | 330 x 40 | 0.65 | ⬡ Hex 1/4" | EDU1BL/SG |
| KBL30FR/CA/FN 2D 2D expl 3D | 190030/CA/FN | 0.7 - 3 | 700 - 1150 | 338 x 40 | 0.8 | ⬡ Hex 1/4" | EDU1BL/SG |
| KBL40FR/CA/FN 2D 2D expl | 190040/CA/FN | 0.9 - 4 | 400 - 700 | 338 x 40 | 0.8 | ⬡ Hex 1/4" | EDU1BL/SG |
