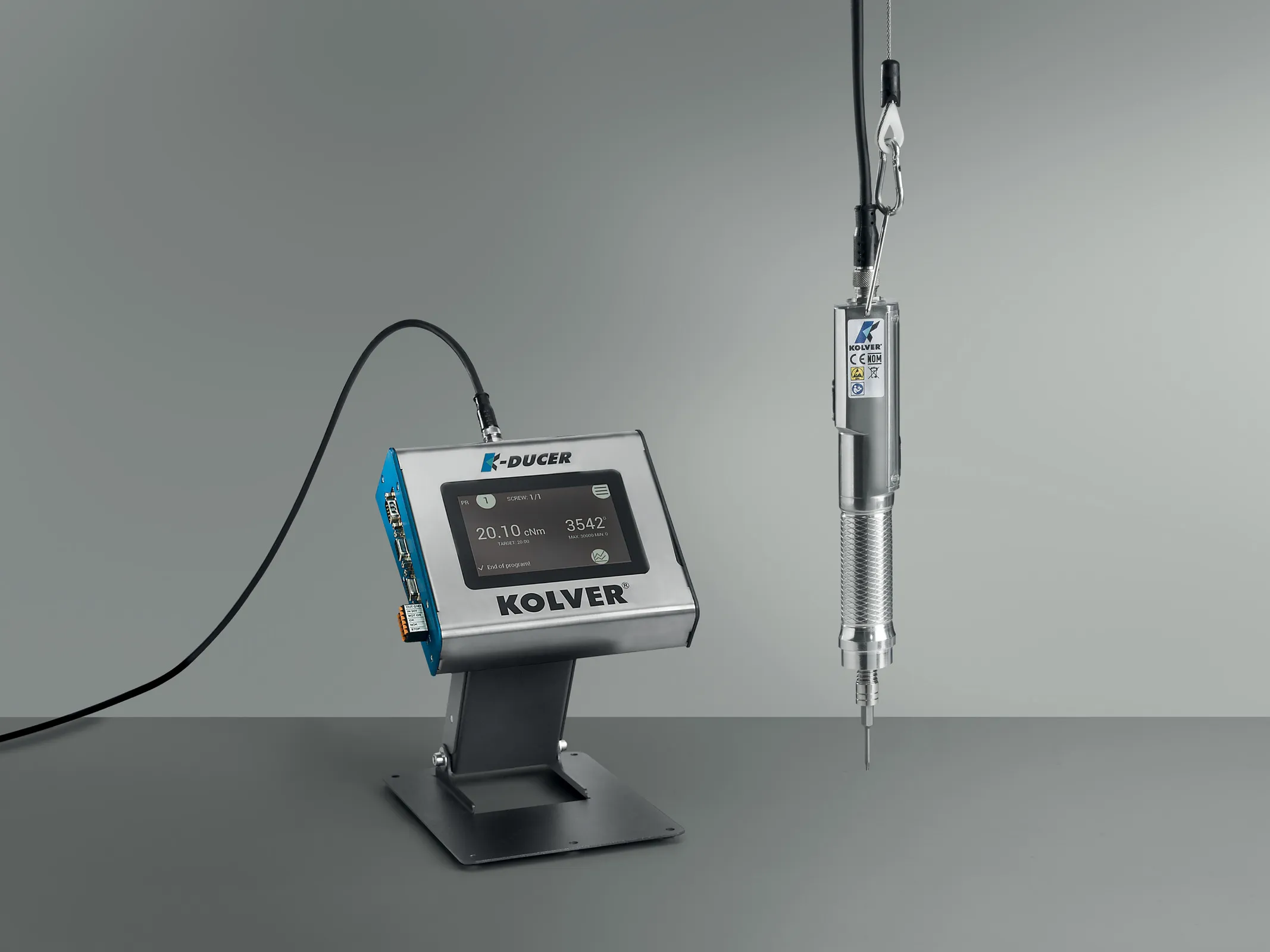

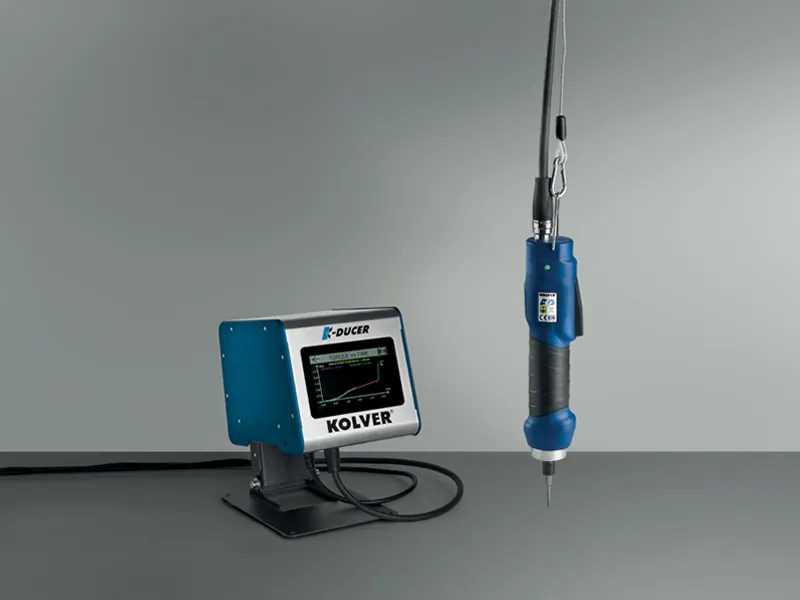

The K-DUCER is our A-class intelligent transducerized assembly system. The system consists of the KDU, an advanced state-of-the-art controller, and the KDS, a range of handheld and fixtured electric screwdrivers with torque control up to 620 lbf-in.
The K-DUCER is the ideal solution for your Industry 4.0 production line and integrating it in your smart factory will be effortless, thanks to the built-in Modbus TCP and Open Protocol connectivity.
KDS SCREWDRIVERS

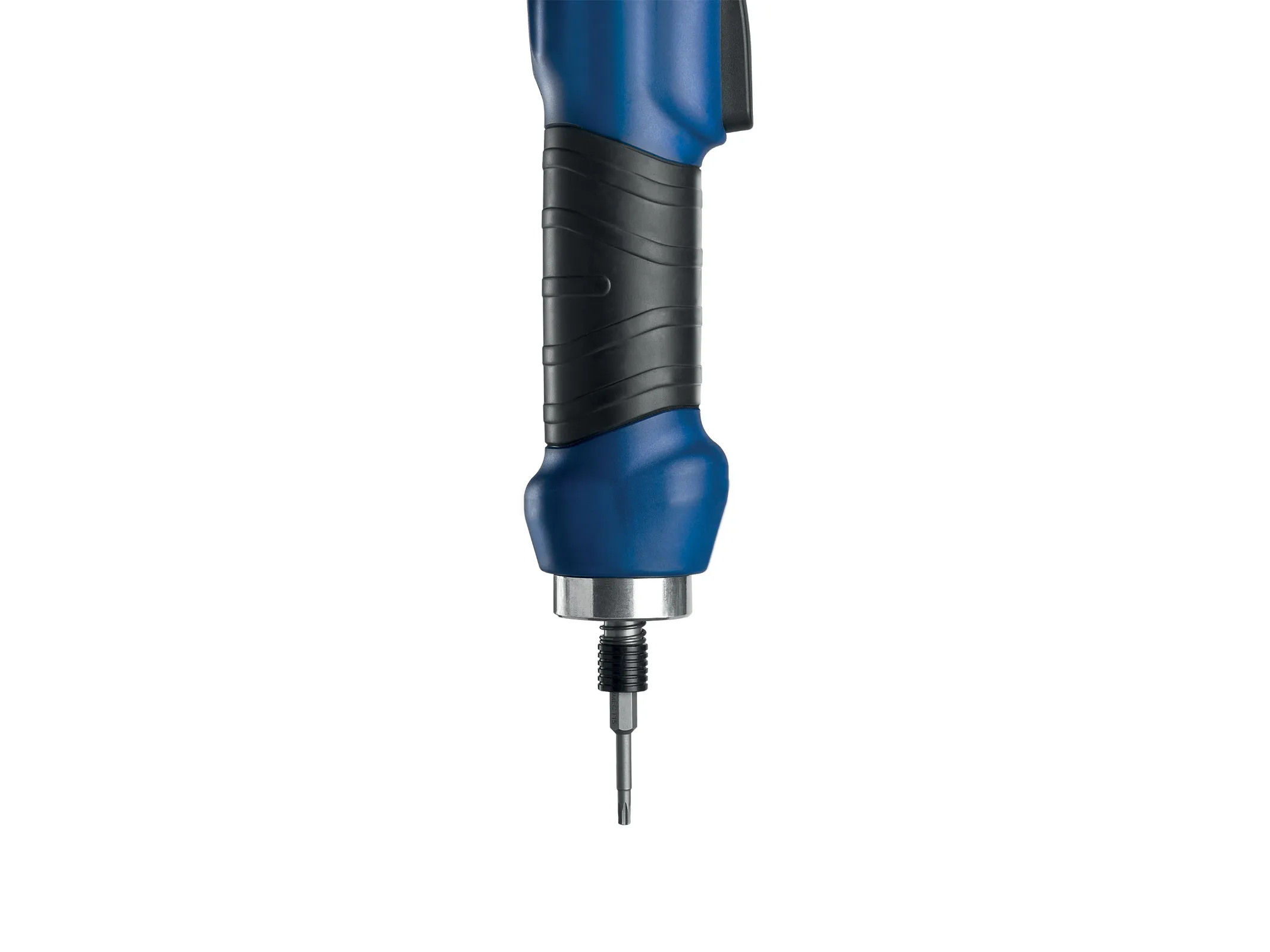

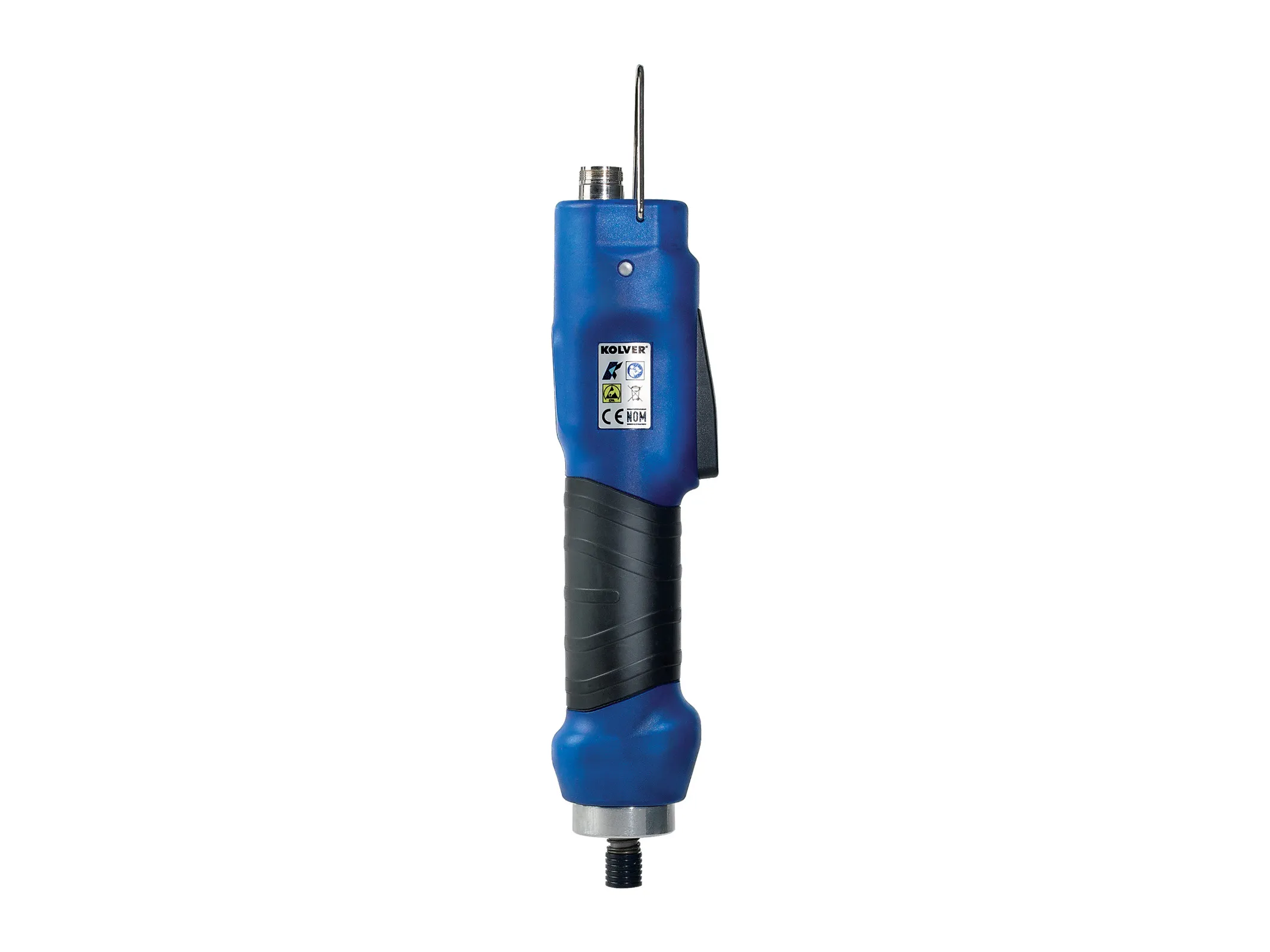

Kolver's KDS transducerized electric screwdrivers cover all assembly line requirements for accurate, high quality torque and angle-controlled fastening.
A built-in compact torque transducer provides closed-loop control with excellent repeatability. Built-in LED lights provide immediate feedback on each tightening process, i.e. you'll be able to check at a glance whether the part is correctly tightened or not.
✓ Unsurpassed ergonomics and soft touch design
✓ LED Status Indicators (ok, error, tightening etc.)
✓ Temperature protection and ESD-safe housing
✓ Full traceability and error proofing capabilities: 100% compatible with Industry 4.0.
✓ Advanced functionality like monitoring and compensation of prevailing torque (running torque)
✓ 200 programs, 24 sequences and 32 programs per sequence
Our electric screwdrivers with torque and angle control are available in straight, pistol, angle and fixture configuration.
| Model | Code | Torque in.lbs | RPM | Weight lb | Dimensions in | Bit Size | Housing |
|---|

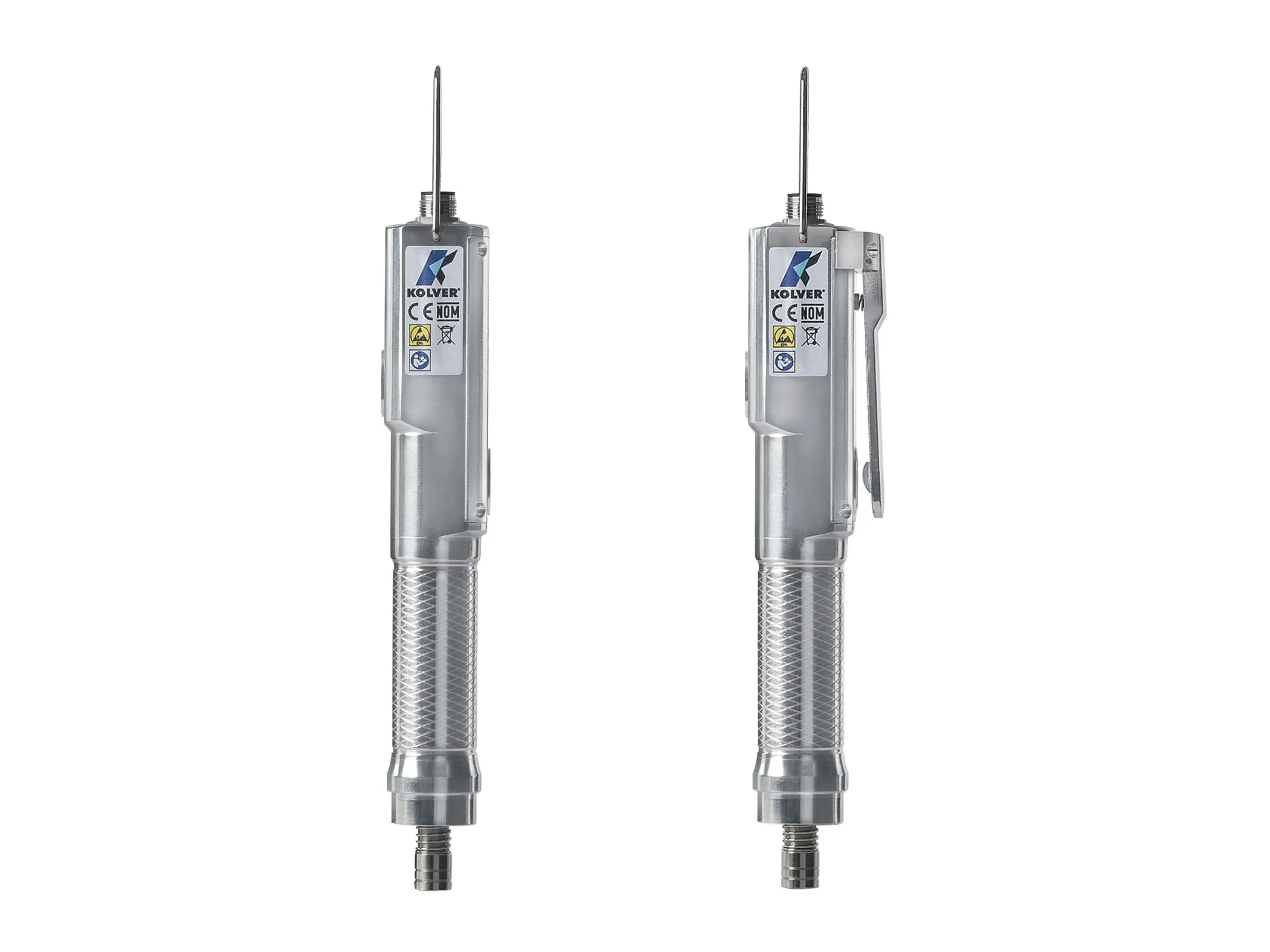

KDS-NT70
2DMisc3D | 165050 | 0.4 - 6.2 | 20 - 700 | 0.66 | 8.8 x 1.1 | Hex 1/4" | Inline |
KDS-NT70/HM
2D | 165050/HM | 0.4 - 6.2 | 20 - 700 | 0.66 | 8.8 x 1.1 | Half moon 4 mm | Inline, halfmoon 4 mm |
KDS-NT120
2D3D | 165120 | 1.8 - 10.6 | 20 - 400 | 0.66 | 8.8 x 1.1 | Hex 1/4" | Inline |
KDS-NT120/HM
2D | 165120/HM | 1.8 - 10.6 | 20 - 400 | 0.66 | 8.8 x 1.1 | Half moon 4 mm | Inline, halfmoon 4 mm |
KDS-MT1.5/ESD
2D3D | 175015/ESD | 0.9 - 13.3 | 50 - 850 | 1.54 | 10 x 1.6 | Hex 1/4" | Inline |
KDS-MT1.5/LED/ESD
2D3D | 175015/LED/ESD | 0.9 - 13.3 | 50 - 850 | 1.54 | 10 x 1.6 | Hex 1/4" | Inline, with LEDs |
KDS-MT1.5ANG/ESD
2D | 175015/A/ESD | 0.9 - 13.3 | 50 - 850 | 1.54 | 11.3 x 1.6 | Hex 1/4" | Inline, with angle head |
KDS-MT1.5P/ESD
2D | 175016/ESD | 0.9 - 13.3 | 50 - 850 | 1.54 | 7.3 x 6.8 x 2 | Hex 1/4" | Pistol grip |
KDS-MT1.5P/U/ESD
2D | 175016/U/ESD | 0.9 - 13.3 | 50 - 850 | 1.54 | 7.3 x 6.7 x 2 | Hex 1/4" | Pistol grip with top connector |
KDS-PL3/ESD
2D | 135003/ESD | 3.5 - 26.6 | 50 - 1800 | 1.54 | 9.9 x 1.6 | Hex 1/4" | Inline |
KDS-PL3/LED/ESD
2D | 135003/LED/ESD | 3.5 - 26.6 | 50 - 1800 | 1.54 | 9.9 x 1.6 | Hex 1/4" | Inline, with LEDs |
KDS-PL3/ANG/ESD
2D3D | 135003/A/ESD | 3.5 - 26.6 | 50 - 1800 | 1.54 | 11.3 x 1.6 | Hex 1/4" | Inline, with angle head |
KDS-PL3P/ESD
2D3D | 135004/ESD | 3.5 - 26.6 | 50 - 1800 | 1.54 | 7.3 x 6.7 x 2 | Hex 1/4" | Pistol grip |
KDS-PL3P/U/ESD
2D | 135004/U/ESD | 3.5 - 26.6 | 50 - 1800 | 1.54 | 7.3 x 6.7 x 2 | Hex 1/4" | Pistol grip with top connector |
KDS-PL6/ESD
2D3D | 135006/ESD | 4.4 - 53.1 | 50 - 850 | 1.54 | 9.9 x 1.6 | Hex 1/4" | Inline |
KDS-PL6/LED/ESD
2D3D | 135006/LED/ESD | 4.4 - 53.1 | 50 - 850 | 1.54 | 9.9 x 1.6 | Hex 1/4" | Inline, with LEDs |
KDS-PL6/ANG/ESD
2D3D | 135006/A/ESD | 4.4 - 48.7 | 50 - 850 | 1.54 | 11.3 x 1.6 | Hex 1/4" | Inline, with angle head |
KDS-PL6P/ESD
2D3D | 135007/ESD | 4.4 - 53.1 | 50 - 850 | 1.54 | 7.3 x 6.7 x 2 | Hex 1/4" | Pistol grip |
KDS-PL6P/U/ESD
2D3D | 135007/U/ESD | 4.4 - 53.1 | 50 - 850 | 1.54 | 7.3 x 6.7 x 2 | Hex 1/4" | Pistol grip with top connector |
KDS-PL10/ESD
2D | 135010/ESD | 7.1 - 88.5 | 50 - 600 | 1.54 | 9.9 x 1.6 | Hex 1/4" | Inline |
KDS-PL10/LED/ESD
2D | 135010/LED/ESD | 7.1 - 88.5 | 50 - 600 | 1.54 | 9.9 x 1.6 | Hex 1/4" | Inline, with LEDs |
KDS-PL10/ANG/ESD
2D3D | 135010/A/ESD | 7.1 - 79.7 | 50 - 600 | 1.54 | 11.3 x 1.6 | Hex 1/4" | Inline, with angle head |
KDS-PL10P/ESD
2D | 135011/ESD | 7.1 - 88.5 | 50 - 600 | 1.54 | 7.3 x 6.7 x 2 | Hex 1/4" | Pistol grip |
KDS-PL10P/U/ESD
2D3D | 135011/U/ESD | 7.1 - 88.5 | 50 - 600 | 1.54 | 7.3 x 6.7 x 2 | Hex 1/4" | Pistol grip with top connector |
KDS-PL15/ESD
2D | 135015/ESD | 4.4 - 132.8 | 50 - 320 | 1.54 | 9.9 x 1.6 | Hex 1/4" | Inline |
KDS-PL15/LED/ESD
2D | 135015/LED/ESD | 4.4 - 132.8 | 50 - 320 | 1.54 | 9.9 x 1.6 | Hex 1/4" | Inline, with LEDs |
KDS-PL15/ANG-1/4/ESD
2D3D | 135015/A-1-4/ESD | 4.4 - 106.2 | 50 - 320 | 1.98 | 12.8 x 1.6 | Hex 1/4" | Inline, with angle head |
KDS-PL15/ANG-3/8/ESD
2D3D | 135015/A/ESD | 4.4 - 132.8 | 50 - 320 | 1.98 | 12.8 x 1.6 | Sq 3/8" | Inline, with angle head |
KDS-PL15P/ESD
2D | 135016/ESD | 4.4 - 132.8 | 50 - 320 | 1.54 | 7.3 x 6.7 x 2 | Hex 1/4" | Pistol grip |
KDS-PL15P/U/ESD
2D3D | 135016/U/ESD | 4.4 - 132.8 | 50 - 320 | 1.54 | 7.3 x 6.7 x 2 | Hex 1/4" | Pistol grip with top connector |
KDS-PL20
2D3D | 135020 | 17.7 - 177 | 20 - 210 | 2.86 | 11.7 x 1.9 | Sq 3/8" | Inline |
| KDS-PL20ANG | 135020/A | 17.7 - 177 | 20 - 210 | 2.86 | 17.5 x 1.9 | Sq 3/8" | Inline, with angle head |
KDS-PL30ANG
2D3D | 135030/A | 26.6 - 265.5 | 20 - 140 | 4.62 | 17.6 x 1.9 | Sq 3/8" | Inline, with angle head |
KDS-PL35
2D3D | 135035 | 26.6 - 309.8 | 20 - 140 | 3.96 | 12.5 x 1.7 | Sq 3/8" | Inline |
KDS-PL45ANG
2D3D | 135045/A | 35.4 - 398.3 | 20 - 90 | 6.16 | 18.4 x 2.3 | Sq 1/2" | Inline, with angle head |
KDS-PL50
2D3D | 135050 | 44.3 - 442.5 | 20 - 90 | 3.96 | 12.7 x 1.7 | Sq 1/2" | Inline |
KDS-PL70ANG
2D2D expl3D | 135070/A | 62 - 619.6 | 10 - 50 | 6.16 | 18.5 x 2.3 | Sq 1/2" | Inline, with angle head |
KDU CONTROLLERS
The KDU Series of controllers give you full control of your fastening operation in an industry leading compact size.
✓ Touch screen color display
✓ Multiple programs and sequences
✓ Intuitive programming interface
✓ Precise torque and angle control
✓ Real-time Torque Graphs
✓ Perfect integration with Industry 4.0
✓ Advanced functionality to manage running/prevailing torque
The KDU units provide unmatched performance and value.
Set-up and operation are really an easy task.
The KDU advanced controllers have full communication capability using any communication system of your choice.
Units may be programmed either through the touch screen or via a PC software. KDU controllers will operate all KDS electric screwdrivers.
| Model | Code | Description | Weight lb | Dimensions in |
|---|
KDU-1A
2D2D expl3D | 035001/A | Control unit for KDS with Modbus TCP interface | 5.5 | 7.5 x 8.1 x 4.7 |
KDU-NT
2D3D | 033001 | Control unit for KDS-NT with Modbus TCP interface | 3.3 | 7.2 x 6.7 x 2.7 |
Model: KDS-NT70
2D 2D expl Misc 3D |
|---|
| Code: 165050 |
| Torque in.lbs: 0.4 - 6.2 |
| RPM: 20 - 700 |
| Weight lb: 0.66 |
| Dimensions in: 8.8 x 1.1 |
| Bit Size: Hex 1/4" |
| Housing: Inline |
Model: KDS-NT70/HM
2D |
|---|
| Code: 165050/HM |
| Torque in.lbs: 0.4 - 6.2 |
| RPM: 20 - 700 |
| Weight lb: 0.66 |
| Dimensions in: 8.8 x 1.1 |
| Bit Size: Half moon 4 mm |
| Housing: Inline, halfmoon 4 mm |
Model: KDS-NT120
2D 2D expl Misc 3D |
|---|
| Code: 165120 |
| Torque in.lbs: 1.8 - 10.6 |
| RPM: 20 - 400 |
| Weight lb: 0.66 |
| Dimensions in: 8.8 x 1.1 |
| Bit Size: Hex 1/4" |
| Housing: Inline |
Model: KDS-NT120/HM
2D |
|---|
| Code: 165120/HM |
| Torque in.lbs: 1.8 - 10.6 |
| RPM: 20 - 400 |
| Weight lb: 0.66 |
| Dimensions in: 8.8 x 1.1 |
| Bit Size: Half moon 4 mm |
| Housing: Inline, halfmoon 4 mm |
Model: KDS-MT1.5/ESD
2D 2D expl Misc 3D |
|---|
| Code: 175015/ESD |
| Torque in.lbs: 0.9 - 13.3 |
| RPM: 50 - 850 |
| Weight lb: 1.54 |
| Dimensions in: 10 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline |
Model: KDS-MT1.5/LED/ESD
2D 2D expl Misc 3D |
|---|
| Code: 175015/LED/ESD |
| Torque in.lbs: 0.9 - 13.3 |
| RPM: 50 - 850 |
| Weight lb: 1.54 |
| Dimensions in: 10 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline, with LEDs |
Model: KDS-MT1.5ANG/ESD
2D |
|---|
| Code: 175015/A/ESD |
| Torque in.lbs: 0.9 - 13.3 |
| RPM: 50 - 850 |
| Weight lb: 1.54 |
| Dimensions in: 11.3 x 1.6 |
| Bit Size: Hex 1/4" |

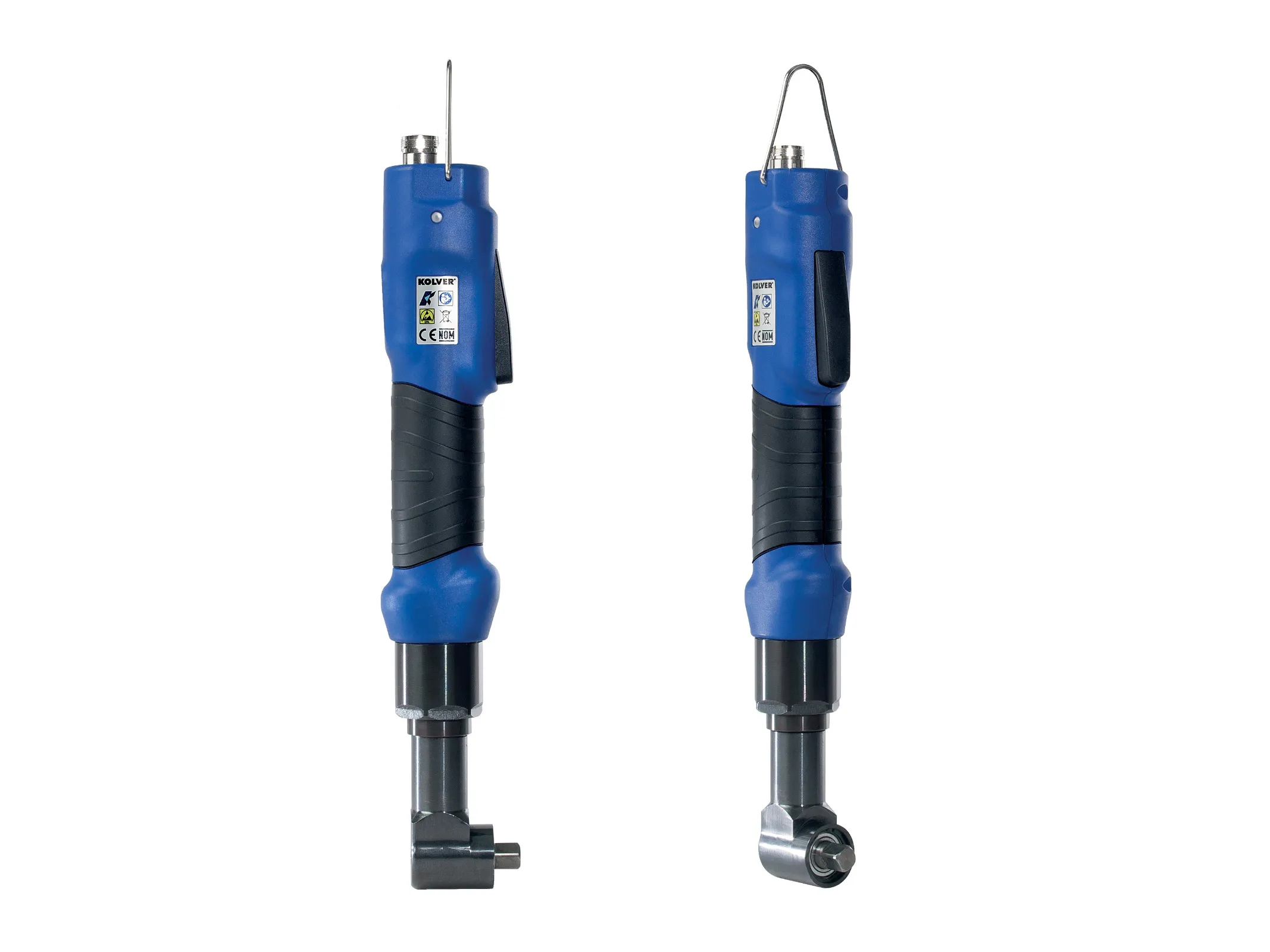

| Housing: Inline, with angle head |
Model: KDS-MT1.5P/ESD
2D |
|---|
| Code: 175016/ESD |
| Torque in.lbs: 0.9 - 13.3 |
| RPM: 50 - 850 |
| Weight lb: 1.54 |
| Dimensions in: 7.3 x 6.8 x 2 |
| Bit Size: Hex 1/4" |
| Housing: Pistol grip |
Model: KDS-MT1.5P/U/ESD
2D |
|---|
| Code: 175016/U/ESD |
| Torque in.lbs: 0.9 - 13.3 |
| RPM: 50 - 850 |
| Weight lb: 1.54 |
| Dimensions in: 7.3 x 6.7 x 2 |
| Bit Size: Hex 1/4" |
| Housing: Pistol grip with top connector |
Model: KDS-PL3/ESD
2D |
|---|
| Code: 135003/ESD |
| Torque in.lbs: 3.5 - 26.6 |
| RPM: 50 - 1800 |
| Weight lb: 1.54 |
| Dimensions in: 9.9 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline |
Model: KDS-PL3/LED/ESD
2D |
|---|
| Code: 135003/LED/ESD |
| Torque in.lbs: 3.5 - 26.6 |
| RPM: 50 - 1800 |
| Weight lb: 1.54 |
| Dimensions in: 9.9 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline, with LEDs |
Model: KDS-PL3/ANG/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135003/A/ESD |
| Torque in.lbs: 3.5 - 26.6 |
| RPM: 50 - 1800 |
| Weight lb: 1.54 |
| Dimensions in: 11.3 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline, with angle head |
Model: KDS-PL3P/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135004/ESD |
| Torque in.lbs: 3.5 - 26.6 |
| RPM: 50 - 1800 |
| Weight lb: 1.54 |
| Dimensions in: 7.3 x 6.7 x 2 |
| Bit Size: Hex 1/4" |
| Housing: Pistol grip |
Model: KDS-PL3P/U/ESD
2D |
|---|
| Code: 135004/U/ESD |
| Torque in.lbs: 3.5 - 26.6 |
| RPM: 50 - 1800 |
| Weight lb: 1.54 |
| Dimensions in: 7.3 x 6.7 x 2 |
| Bit Size: Hex 1/4" |
| Housing: Pistol grip with top connector |
Model: KDS-PL6/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135006/ESD |
| Torque in.lbs: 4.4 - 53.1 |
| RPM: 50 - 850 |
| Weight lb: 1.54 |
| Dimensions in: 9.9 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline |
Model: KDS-PL6/LED/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135006/LED/ESD |
| Torque in.lbs: 4.4 - 53.1 |
| RPM: 50 - 850 |
| Weight lb: 1.54 |
| Dimensions in: 9.9 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline, with LEDs |
Model: KDS-PL6/ANG/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135006/A/ESD |
| Torque in.lbs: 4.4 - 48.7 |
| RPM: 50 - 850 |
| Weight lb: 1.54 |
| Dimensions in: 11.3 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline, with angle head |
Model: KDS-PL6P/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135007/ESD |
| Torque in.lbs: 4.4 - 53.1 |
| RPM: 50 - 850 |
| Weight lb: 1.54 |
| Dimensions in: 7.3 x 6.7 x 2 |
| Bit Size: Hex 1/4" |
| Housing: Pistol grip |
Model: KDS-PL6P/U/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135007/U/ESD |
| Torque in.lbs: 4.4 - 53.1 |
| RPM: 50 - 850 |
| Weight lb: 1.54 |
| Dimensions in: 7.3 x 6.7 x 2 |
| Bit Size: Hex 1/4" |
| Housing: Pistol grip with top connector |
Model: KDS-PL10/ESD
2D |
|---|
| Code: 135010/ESD |
| Torque in.lbs: 7.1 - 88.5 |
| RPM: 50 - 600 |
| Weight lb: 1.54 |
| Dimensions in: 9.9 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline |
Model: KDS-PL10/LED/ESD
2D |
|---|
| Code: 135010/LED/ESD |
| Torque in.lbs: 7.1 - 88.5 |
| RPM: 50 - 600 |
| Weight lb: 1.54 |
| Dimensions in: 9.9 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline, with LEDs |
Model: KDS-PL10/ANG/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135010/A/ESD |
| Torque in.lbs: 7.1 - 79.7 |
| RPM: 50 - 600 |
| Weight lb: 1.54 |
| Dimensions in: 11.3 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline, with angle head |
Model: KDS-PL10P/ESD
2D |
|---|
| Code: 135011/ESD |
| Torque in.lbs: 7.1 - 88.5 |
| RPM: 50 - 600 |
| Weight lb: 1.54 |
| Dimensions in: 7.3 x 6.7 x 2 |
| Bit Size: Hex 1/4" |
| Housing: Pistol grip |
Model: KDS-PL10P/U/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135011/U/ESD |
| Torque in.lbs: 7.1 - 88.5 |
| RPM: 50 - 600 |
| Weight lb: 1.54 |
| Dimensions in: 7.3 x 6.7 x 2 |
| Bit Size: Hex 1/4" |
| Housing: Pistol grip with top connector |
Model: KDS-PL15/ESD
2D |
|---|
| Code: 135015/ESD |
| Torque in.lbs: 4.4 - 132.8 |
| RPM: 50 - 320 |
| Weight lb: 1.54 |
| Dimensions in: 9.9 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline |
Model: KDS-PL15/LED/ESD
2D |
|---|
| Code: 135015/LED/ESD |
| Torque in.lbs: 4.4 - 132.8 |
| RPM: 50 - 320 |
| Weight lb: 1.54 |
| Dimensions in: 9.9 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline, with LEDs |
Model: KDS-PL15/ANG-1/4/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135015/A-1-4/ESD |
| Torque in.lbs: 4.4 - 106.2 |
| RPM: 50 - 320 |
| Weight lb: 1.98 |
| Dimensions in: 12.8 x 1.6 |
| Bit Size: Hex 1/4" |
| Housing: Inline, with angle head |
Model: KDS-PL15/ANG-3/8/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135015/A/ESD |
| Torque in.lbs: 4.4 - 132.8 |
| RPM: 50 - 320 |
| Weight lb: 1.98 |
| Dimensions in: 12.8 x 1.6 |
| Bit Size: Sq 3/8" |
| Housing: Inline, with angle head |
Model: KDS-PL15P/ESD
2D |
|---|
| Code: 135016/ESD |
| Torque in.lbs: 4.4 - 132.8 |
| RPM: 50 - 320 |
| Weight lb: 1.54 |
| Dimensions in: 7.3 x 6.7 x 2 |
| Bit Size: Hex 1/4" |
| Housing: Pistol grip |
Model: KDS-PL15P/U/ESD
2D 2D expl Misc 3D |
|---|
| Code: 135016/U/ESD |
| Torque in.lbs: 4.4 - 132.8 |
| RPM: 50 - 320 |
| Weight lb: 1.54 |
| Dimensions in: 7.3 x 6.7 x 2 |
| Bit Size: Hex 1/4" |
| Housing: Pistol grip with top connector |
Model: KDS-PL20
2D 2D expl Misc 3D |
|---|
| Code: 135020 |
| Torque in.lbs: 17.7 - 177 |
| RPM: 20 - 210 |
| Weight lb: 2.86 |
| Dimensions in: 11.7 x 1.9 |
| Bit Size: Sq 3/8" |
| Housing: Inline |
| Model: KDS-PL20ANG |
|---|
| Code: 135020/A |
| Torque in.lbs: 17.7 - 177 |
| RPM: 20 - 210 |
| Weight lb: 2.86 |
| Dimensions in: 17.5 x 1.9 |
| Bit Size: Sq 3/8" |
| Housing: Inline, with angle head |
Model: KDS-PL30ANG
2D 2D expl Misc 3D |
|---|
| Code: 135030/A |
| Torque in.lbs: 26.6 - 265.5 |
| RPM: 20 - 140 |
| Weight lb: 4.62 |
| Dimensions in: 17.6 x 1.9 |
| Bit Size: Sq 3/8" |
| Housing: Inline, with angle head |
Model: KDS-PL35
2D 2D expl Misc 3D |
|---|
| Code: 135035 |
| Torque in.lbs: 26.6 - 309.8 |
| RPM: 20 - 140 |
| Weight lb: 3.96 |
| Dimensions in: 12.5 x 1.7 |
| Bit Size: Sq 3/8" |
| Housing: Inline |
Model: KDS-PL45ANG
2D 2D expl Misc 3D |
|---|
| Code: 135045/A |
| Torque in.lbs: 35.4 - 398.3 |
| RPM: 20 - 90 |
| Weight lb: 6.16 |
| Dimensions in: 18.4 x 2.3 |
| Bit Size: Sq 1/2" |
| Housing: Inline, with angle head |
Model: KDS-PL50
2D 2D expl Misc 3D |
|---|
| Code: 135050 |
| Torque in.lbs: 44.3 - 442.5 |
| RPM: 20 - 90 |
| Weight lb: 3.96 |
| Dimensions in: 12.7 x 1.7 |
| Bit Size: Sq 1/2" |
| Housing: Inline |
Model: KDS-PL70ANG
2D 2D expl Misc 3D |
|---|
| Code: 135070/A |
| Torque in.lbs: 62 - 619.6 |
| RPM: 10 - 50 |
| Weight lb: 6.16 |
| Dimensions in: 18.5 x 2.3 |
| Bit Size: Sq 1/2" |
| Housing: Inline, with angle head |
KDU CONTROLLERS
The KDU Series of controllers give you full control of your fastening operation in an industry leading compact size.
✓ Touch screen color display
✓ Multiple programs and sequences
✓ Intuitive programming interface
✓ Precise torque and angle control
✓ Real-time Torque Graphs
✓ Perfect integration with Industry 4.0
✓ Advanced functionality to manage running/prevailing torque
The KDU units provide unmatched performance and value.
Set-up and operation are really an easy task.
The KDU advanced controllers have full communication capability using any communication system of your choice.
Units may be programmed either through the touch screen or via a PC software. KDU controllers will operate all KDS electric screwdrivers.
Model: KDU-1A
2D 2D expl Misc 3D |
|---|
| Code: 035001/A |
| Description: Control unit for KDS with Modbus TCP interface |
| Weight lb: 5.5 |
| Dimensions in: 7.5 x 8.1 x 4.7 |
Model: KDU-NT
2D 2D expl Misc 3D |
|---|
| Code: 033001 |
| Description: Control unit for KDS-NT with Modbus TCP interface |
| Weight lb: 3.3 |
| Dimensions in: 7.2 x 6.7 x 2.7 |
